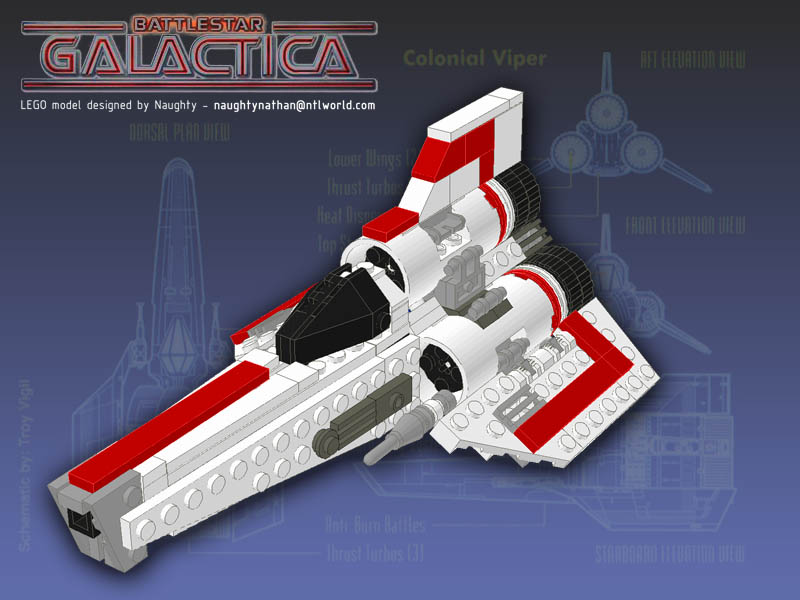

Battlestar Galactica Viper

Here’s the step-by-step instructions for my custom LEGO Viper. There’s 84 steps so it may take a while to load them all up. They’re all displayed at 400×300, but they’re actually double this size so if you want a closer look at any step you can click on it for a full-size version. There’s also an LDRAW file of the model so you can view and play around with it yourself in 3D:

Viper.ldr.

And here’s the parts list:

Viper Parts List.

Finally, there are a couple of uncommon, and colour-rare pieces, so good luck building one if you do attempt to undertake it!

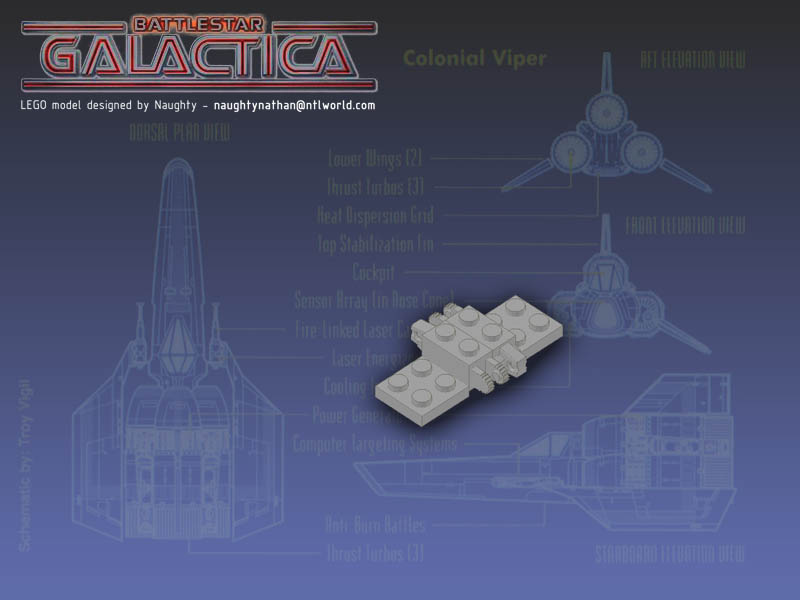

Viper - Step 1

LEGO Viper – Step 1

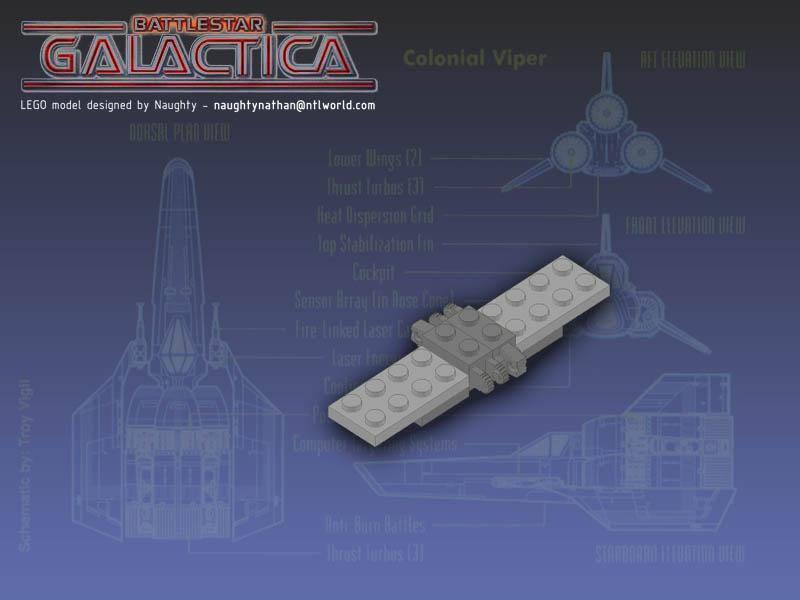

Viper - Step 2

LEGO Viper – Step 2


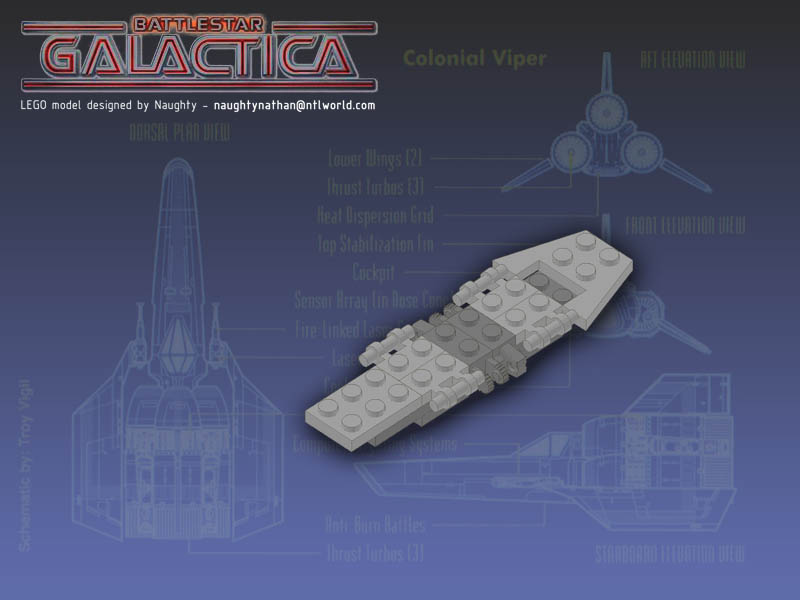

Viper - Step 3

LEGO Viper – Step 3

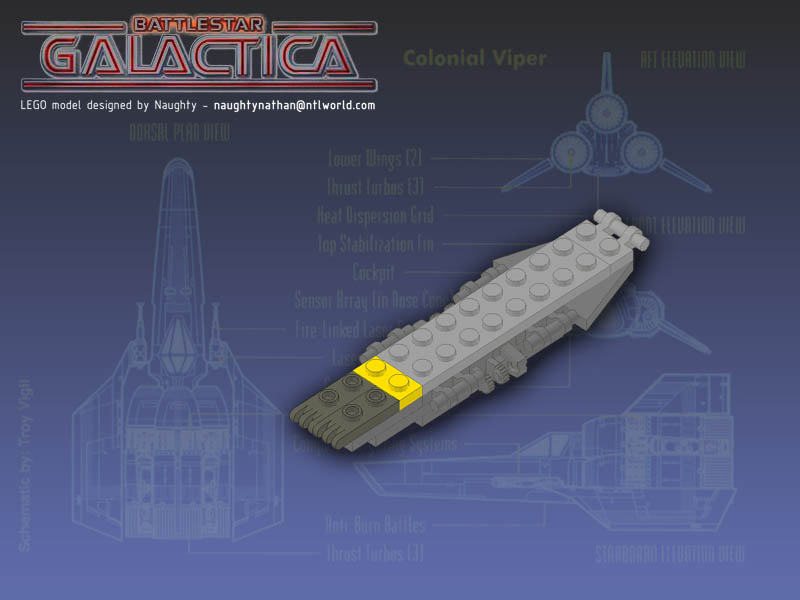

Viper - Step 4

LEGO Viper – Step 4

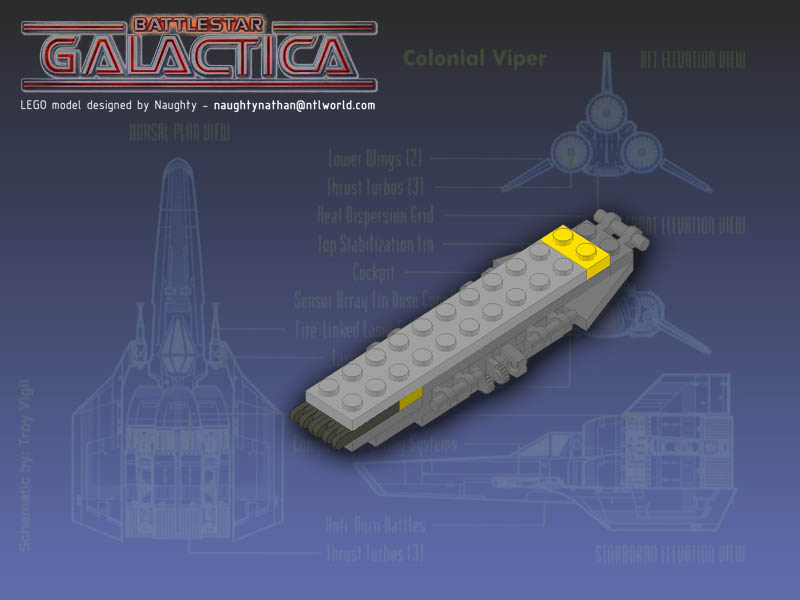

Viper - Step 5

LEGO Viper – Step 5

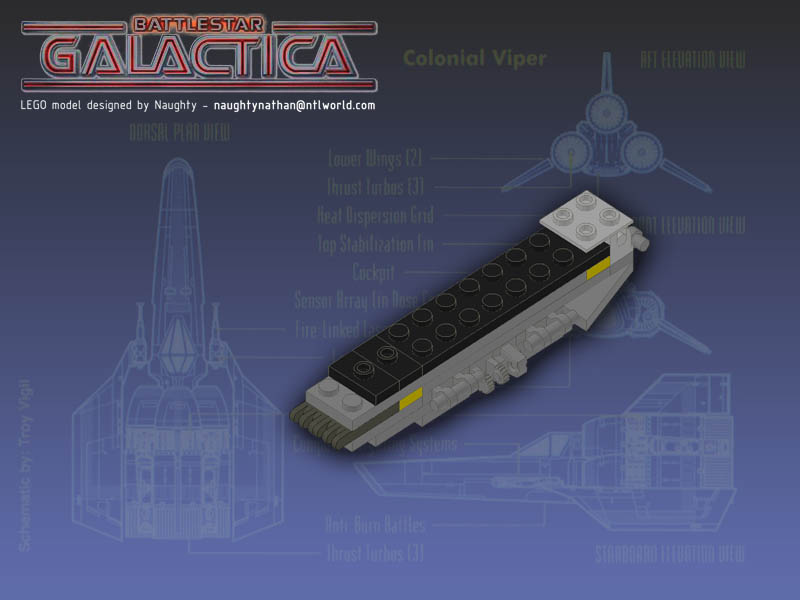

Viper - Step 6

LEGO Viper – Step 6

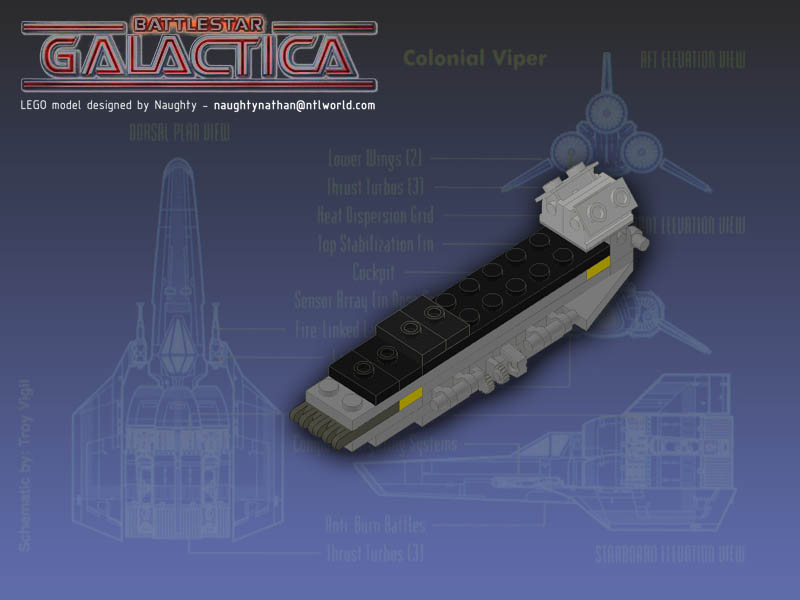

Viper - Step 7

LEGO Viper – Step 7

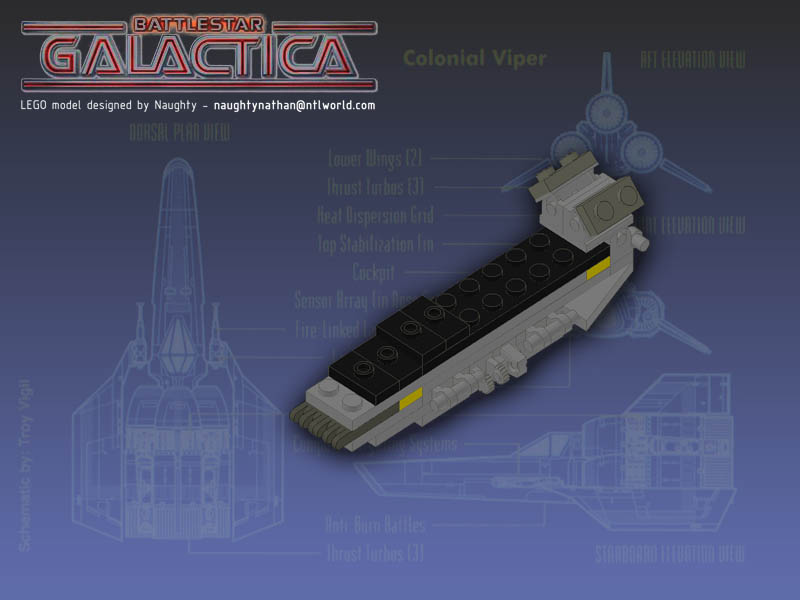

Viper - Step 8

LEGO Viper – Step 8

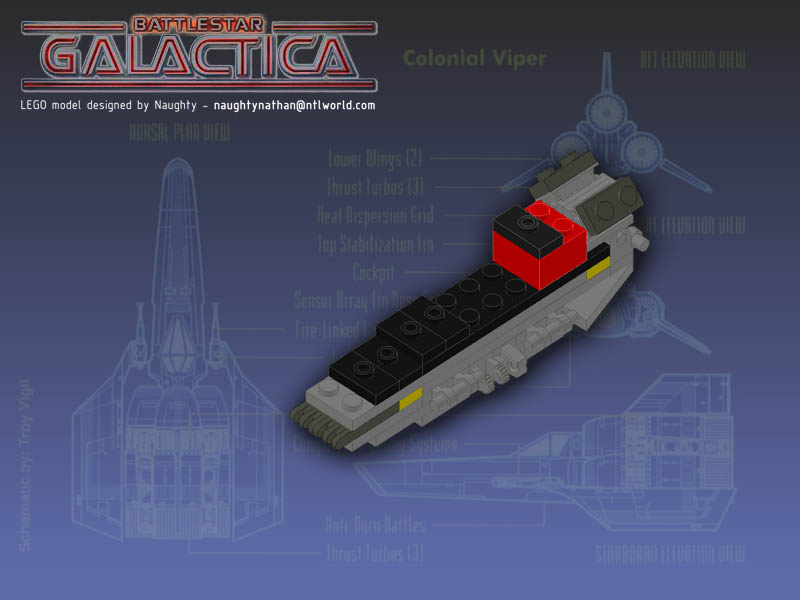

Viper - Step 9

LEGO Viper – Step 9

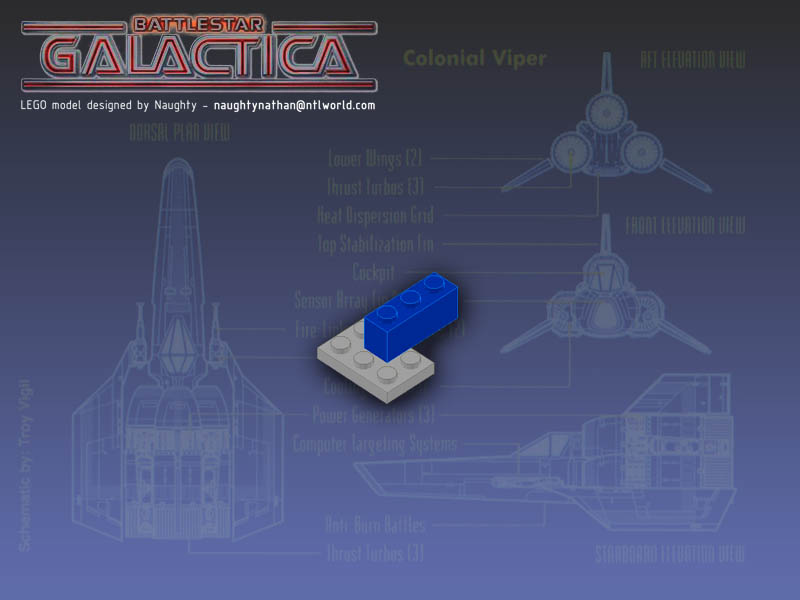

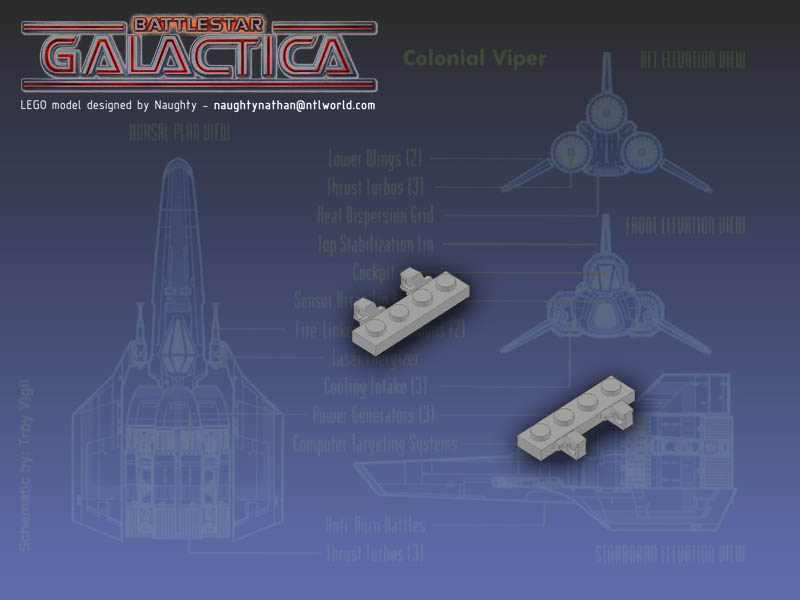

Viper - Step 10

LEGO Viper – Step 10


Viper - Step 11

LEGO Viper – Step 11

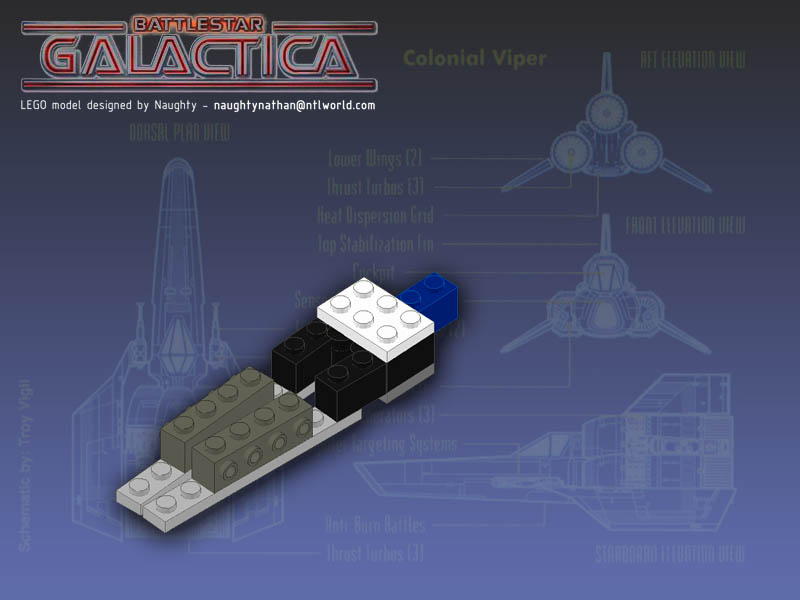

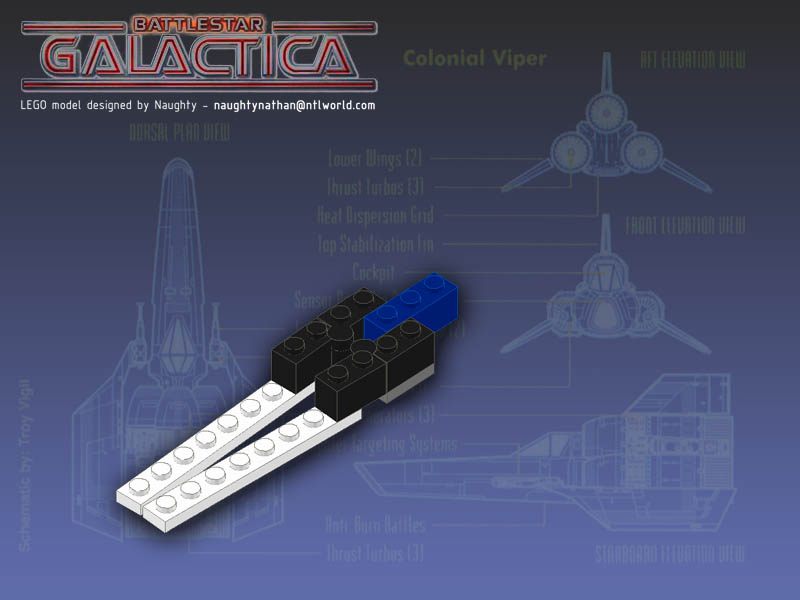

Viper - Step 12

LEGO Viper – Step 12

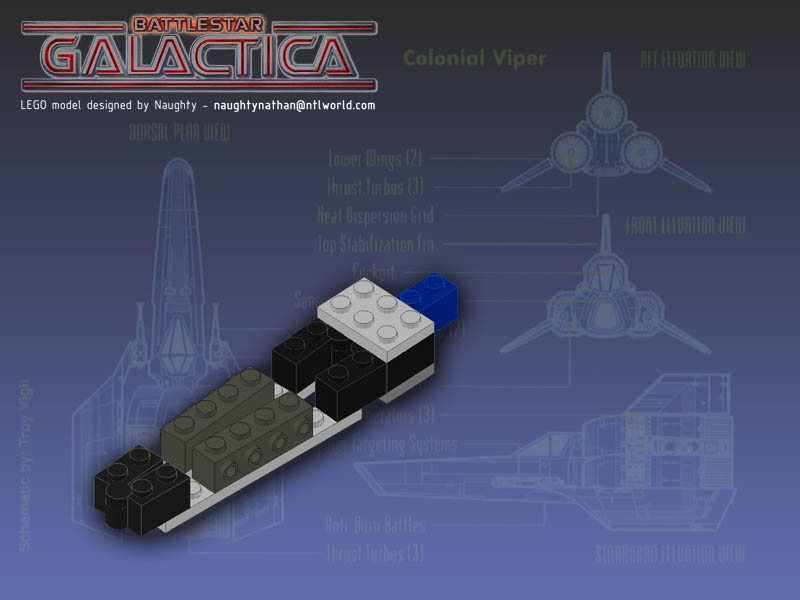

Viper - Step 13

LEGO Viper – Step 13

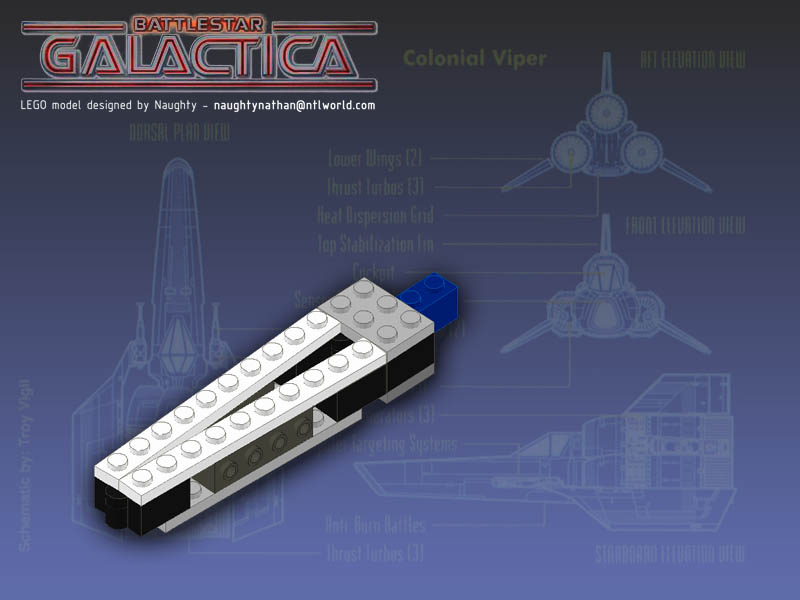

Viper - Step 14

LEGO Viper – Step 14

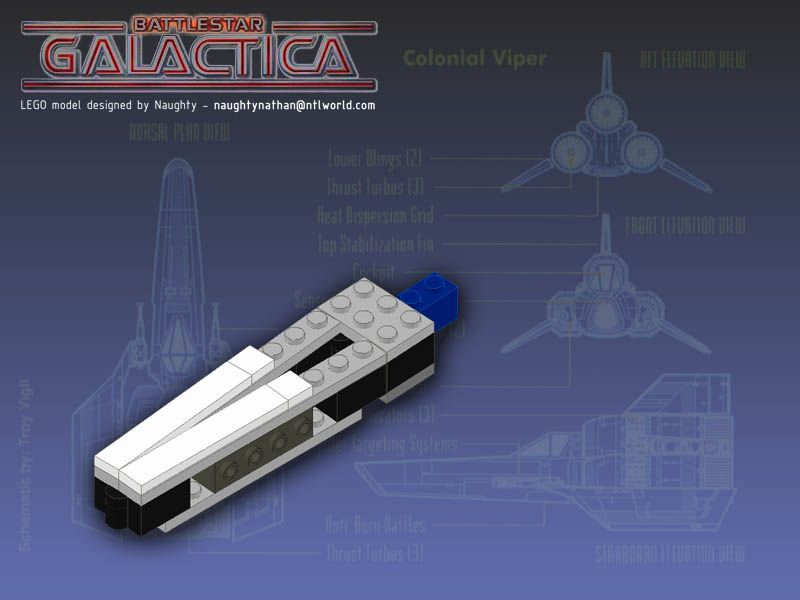

Viper - Step 15

LEGO Viper – Step 15

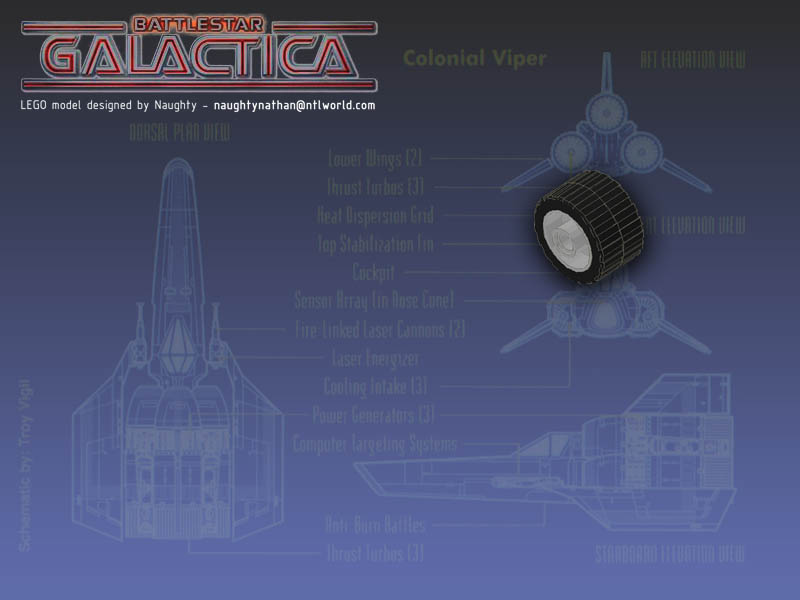

Viper - Step 16

LEGO Viper – Step 16

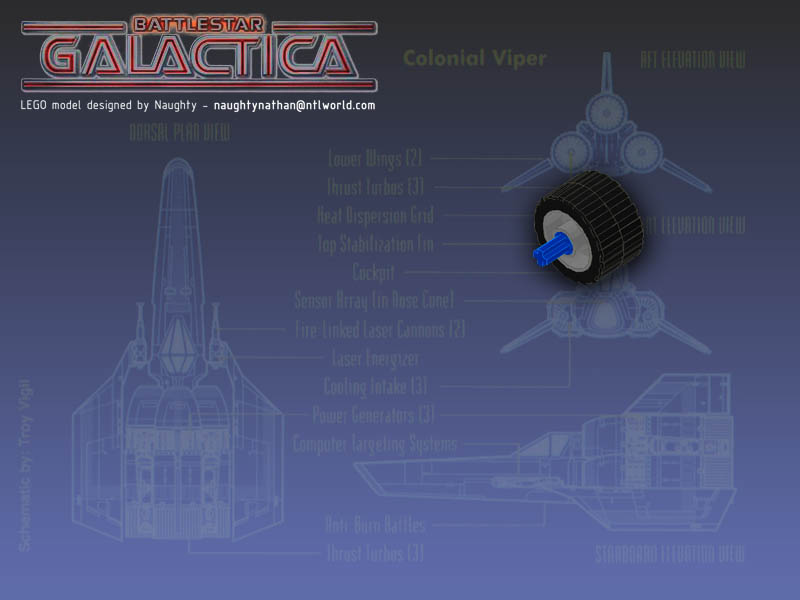

Viper - Step 17

LEGO Viper – Step 17

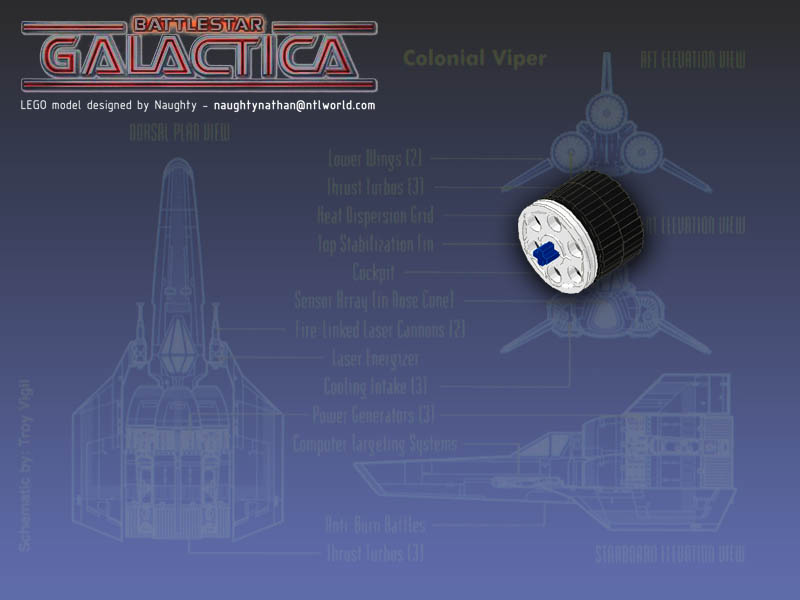

Viper - Step 18

LEGO Viper – Step 18

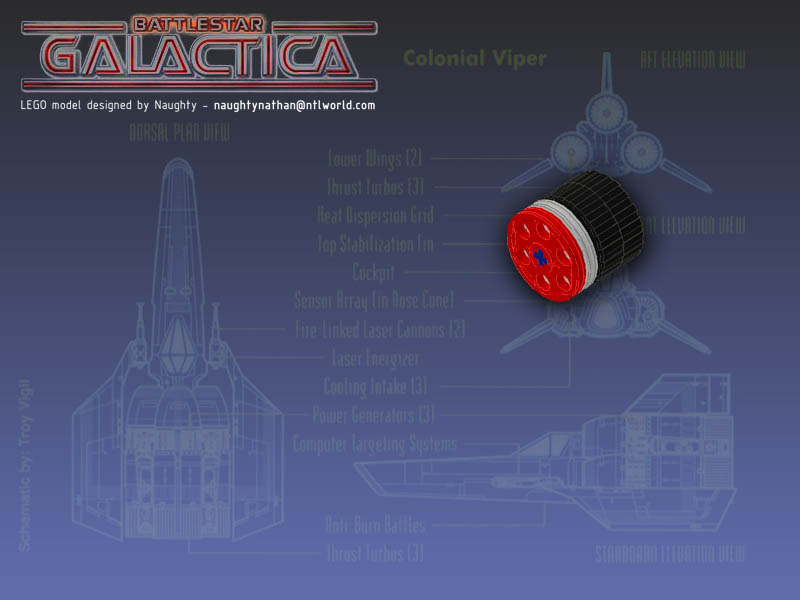

Viper - Step 19

LEGO Viper – Step 19

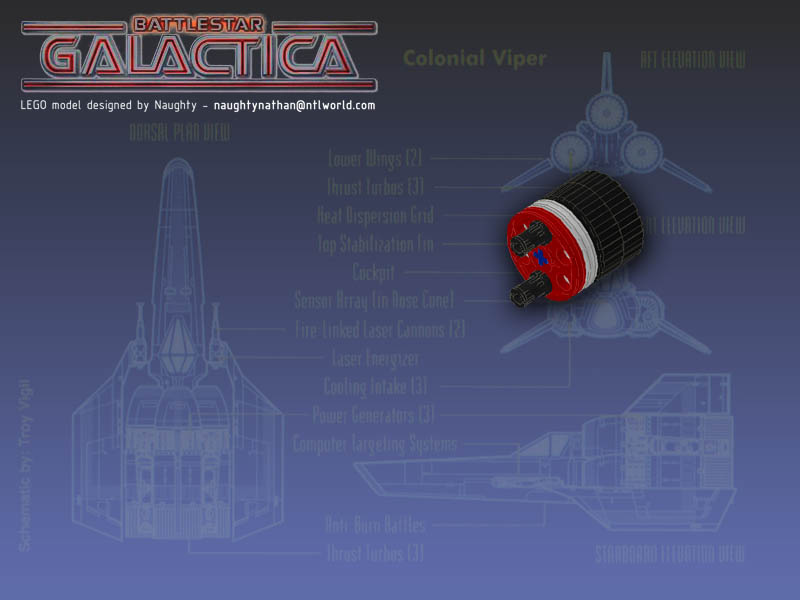

Viper - Step 20

LEGO Viper – Step 20

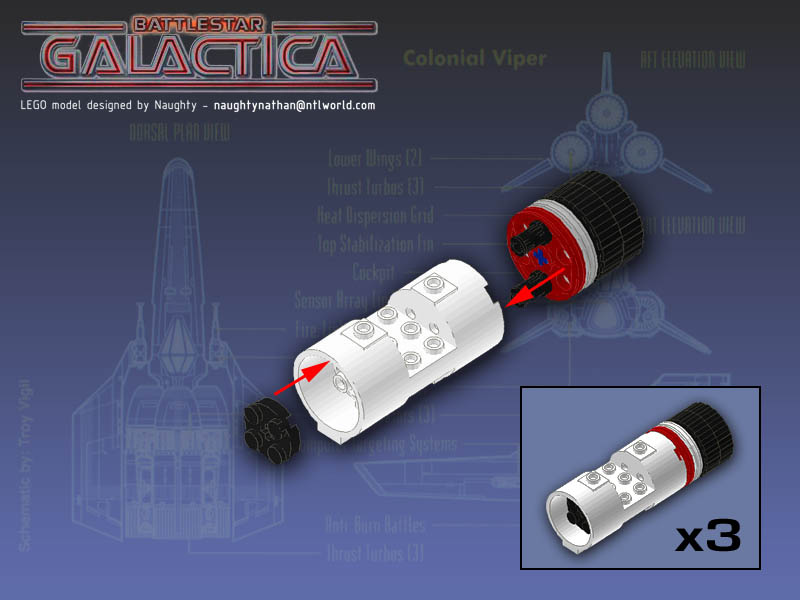

Viper - Step 21

LEGO Viper – Step 21


Viper - Step 22

LEGO Viper – Step 22

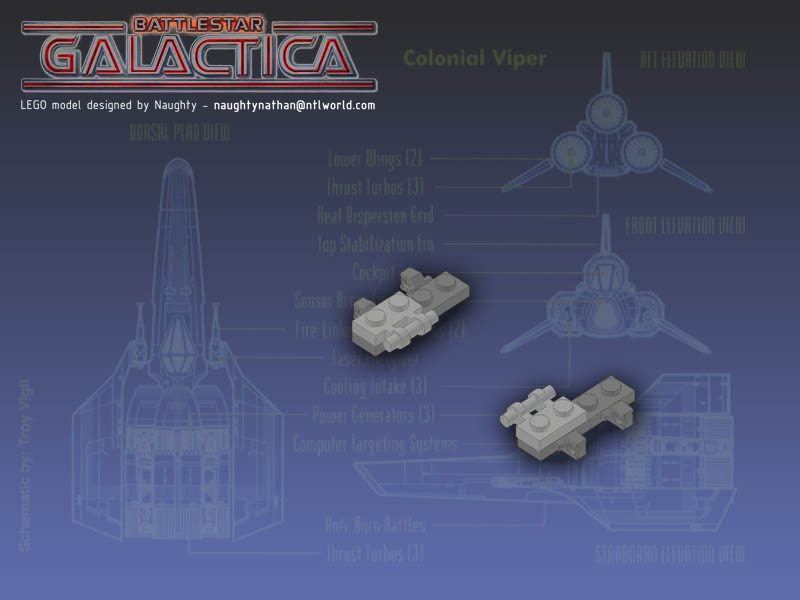

Viper - Step 23

LEGO Viper – Step 23

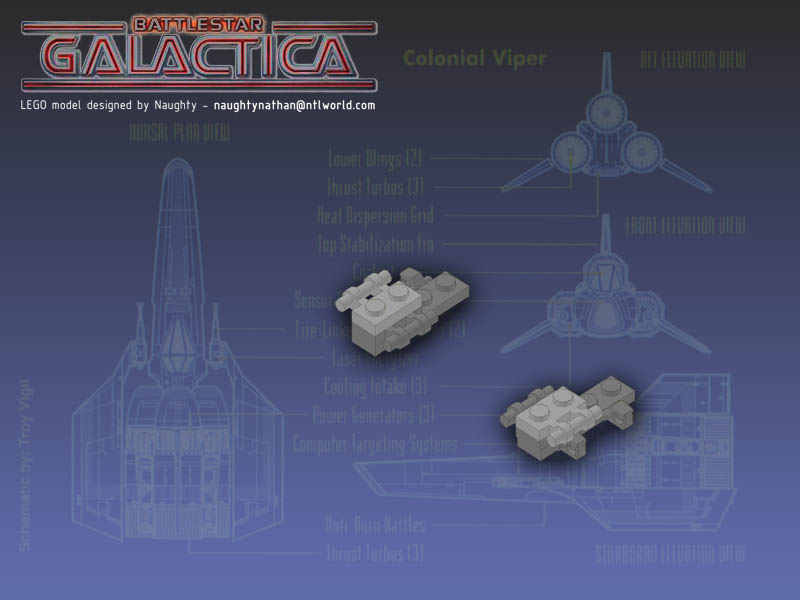

Viper - Step 24

LEGO Viper – Step 24

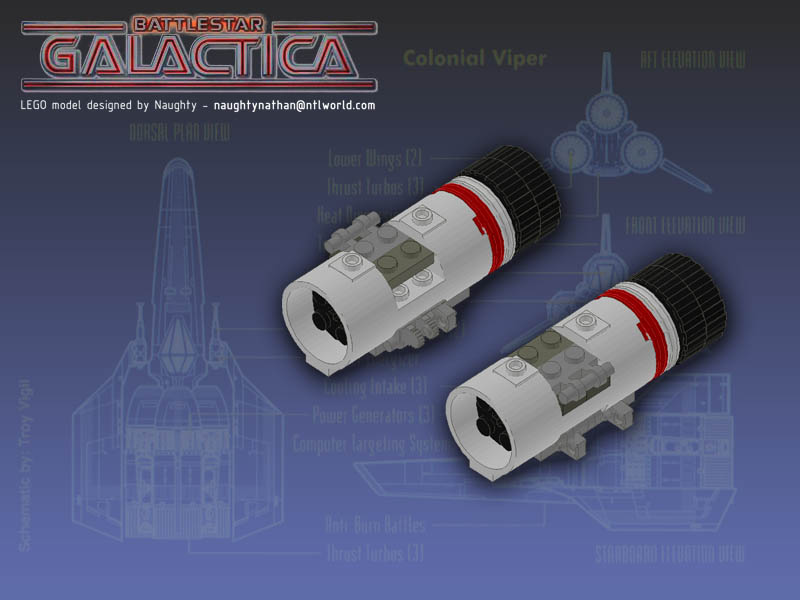

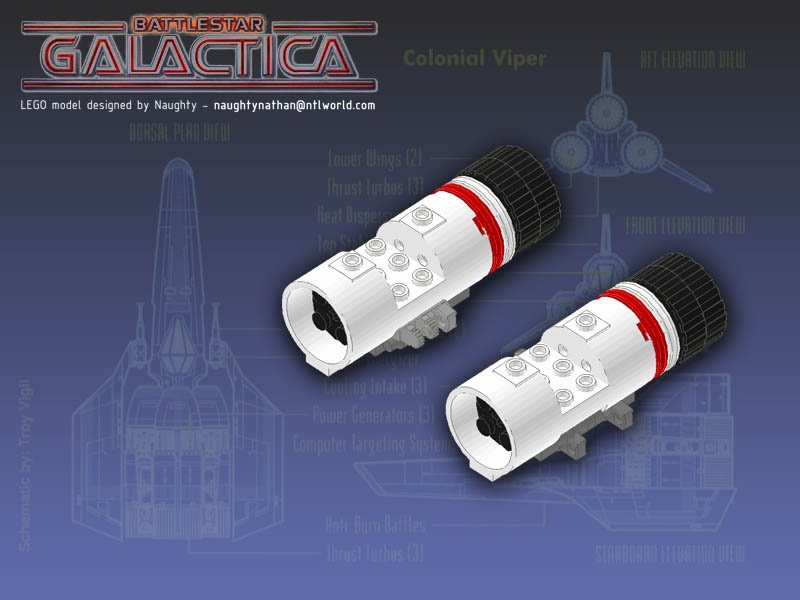

Viper - Step 25

LEGO Viper – Step 25

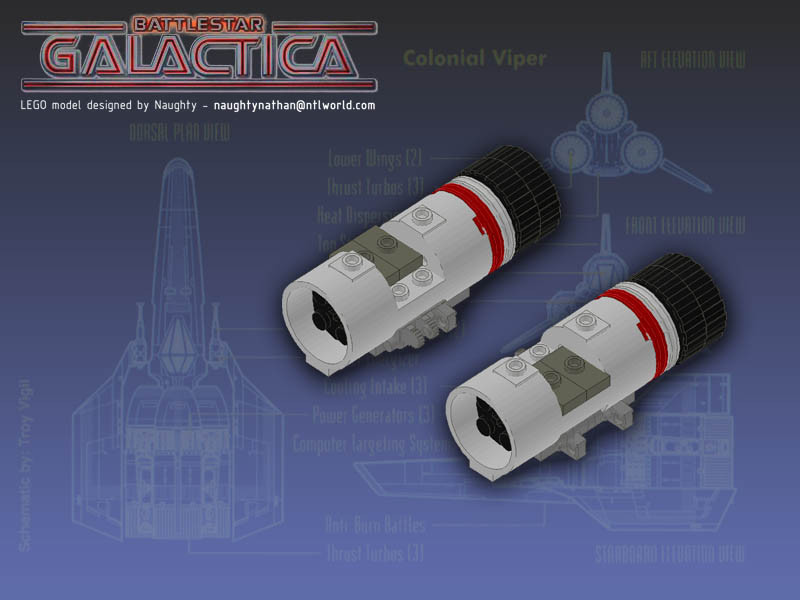

Viper - Step 26

LEGO Viper – Step 26


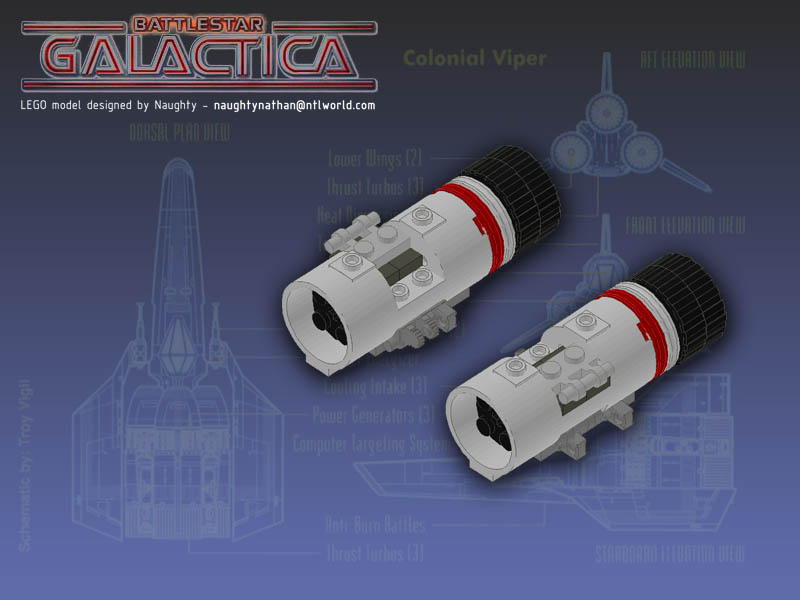

Viper - Step 27

LEGO Viper – Step 27

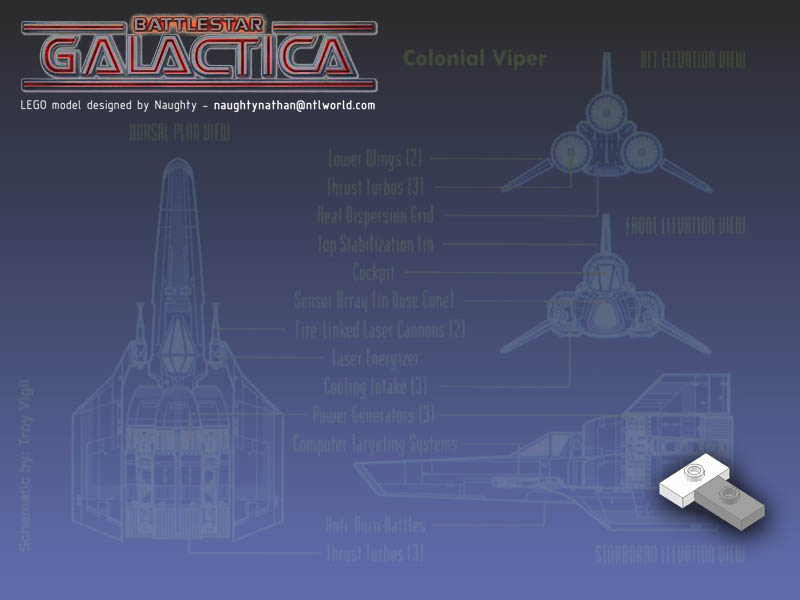

Viper - Step 28

LEGO Viper – Step 28

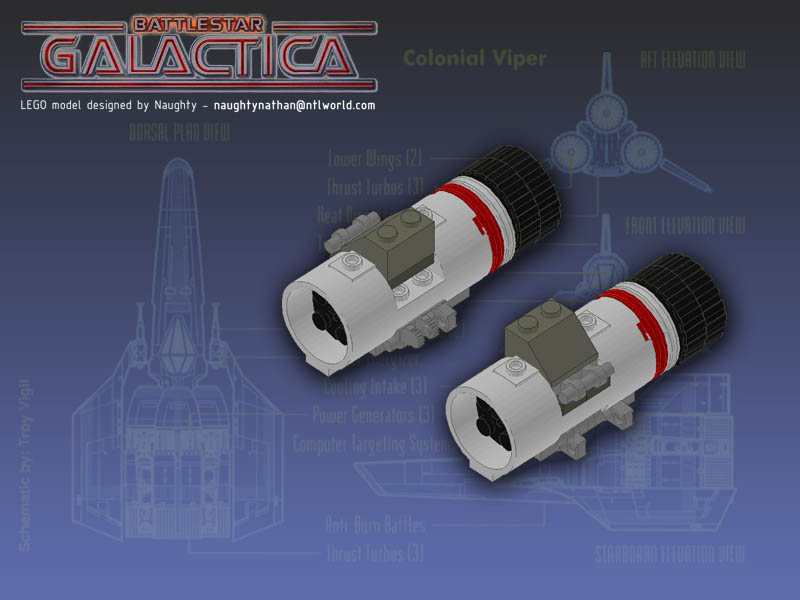

Viper - Step 29

LEGO Viper – Step 29


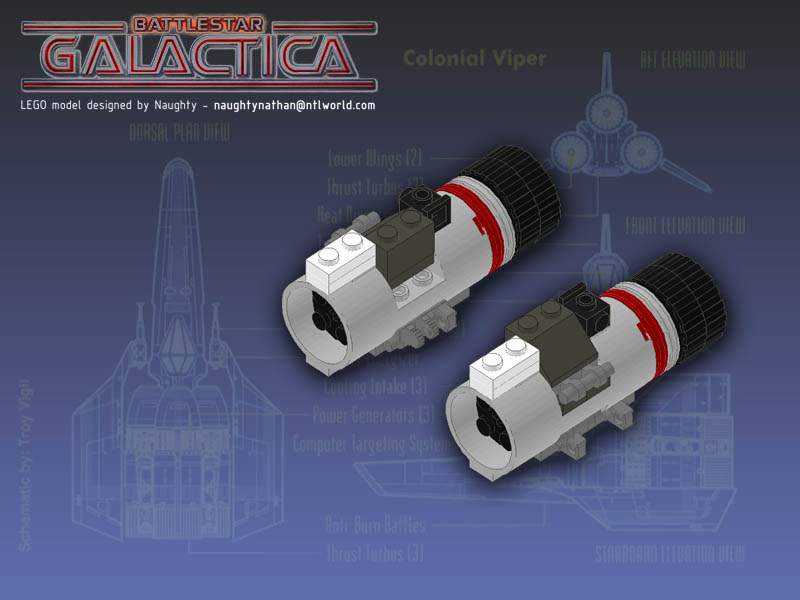

Viper - Step 30

LEGO Viper – Step 30

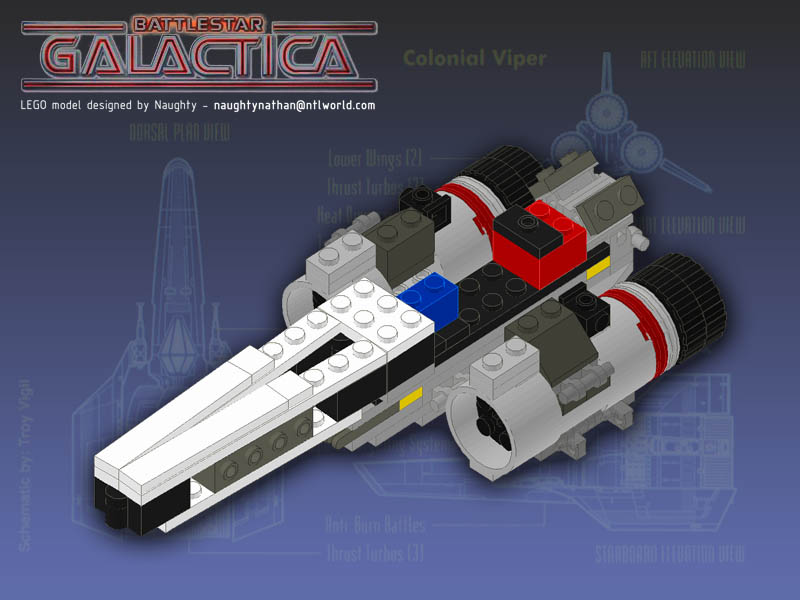

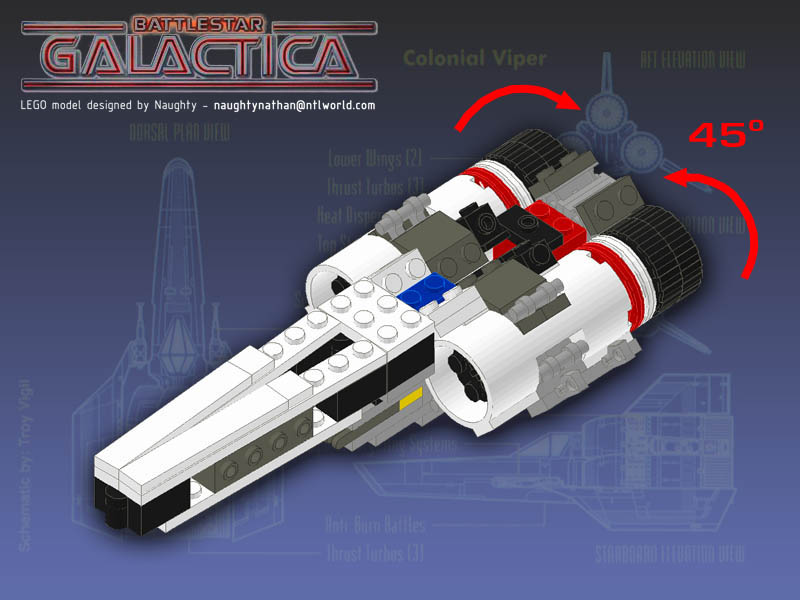

Viper - Step 31

LEGO Viper – Step 31

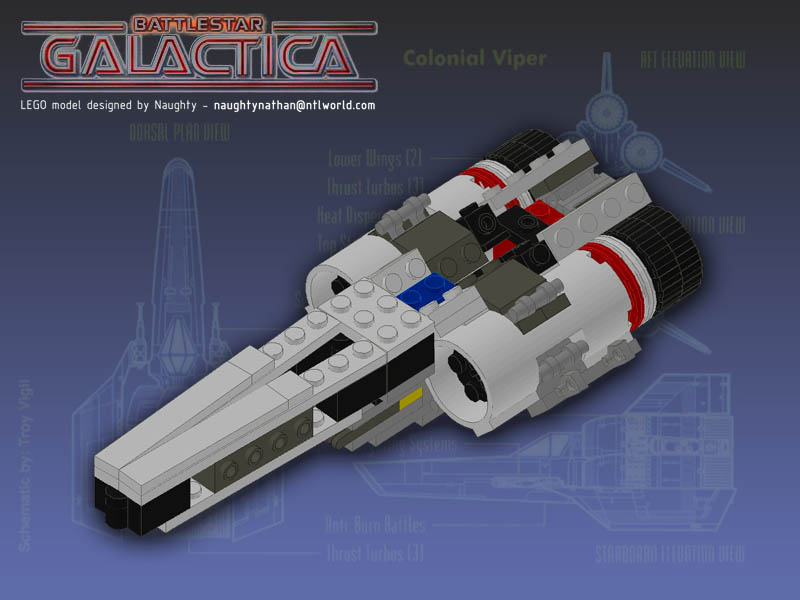

Viper - Step 32

LEGO Viper – Step 32


Viper - Step 33

LEGO Viper – Step 33

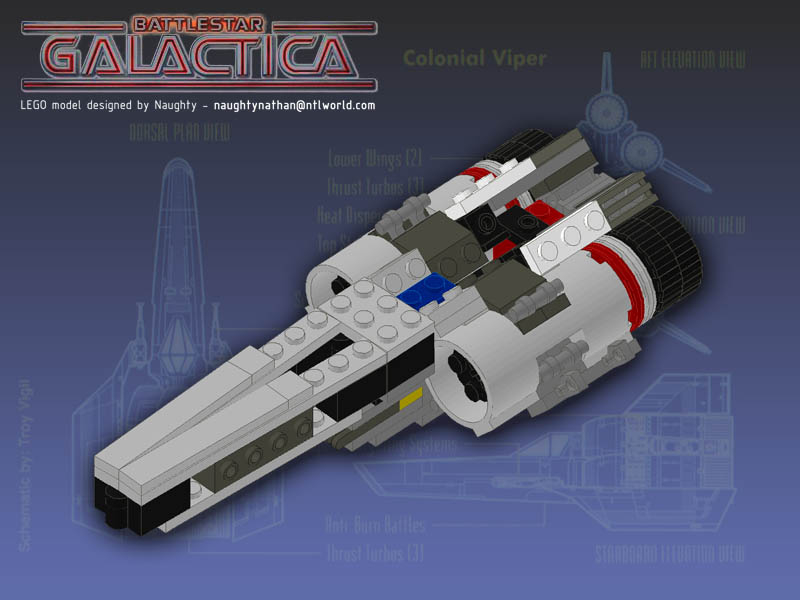

Viper - Step 34

LEGO Viper – Step 34

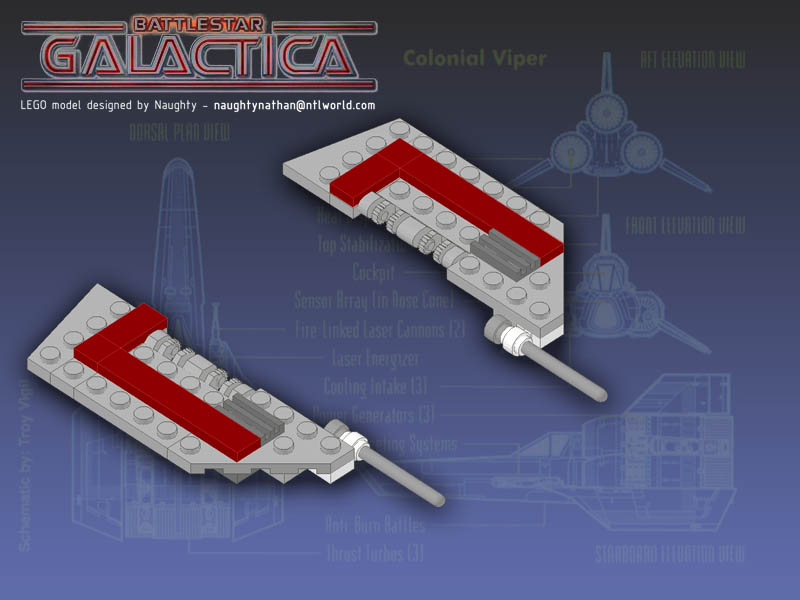

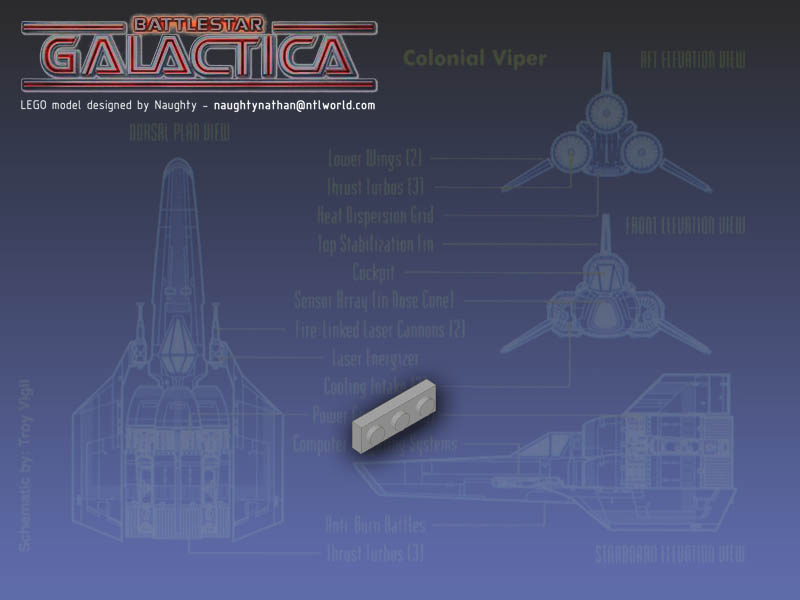

Viper - Step 35

LEGO Viper – Step 35

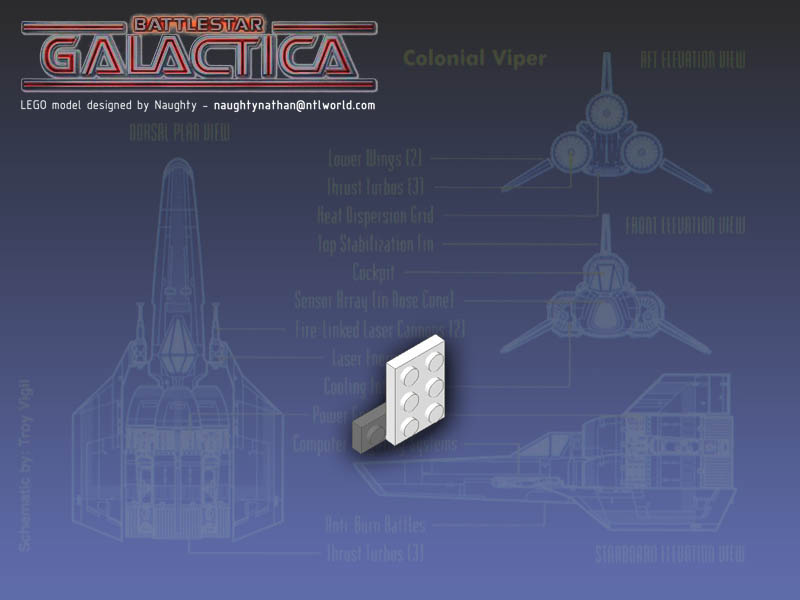

Viper - Step 36

LEGO Viper – Step 36

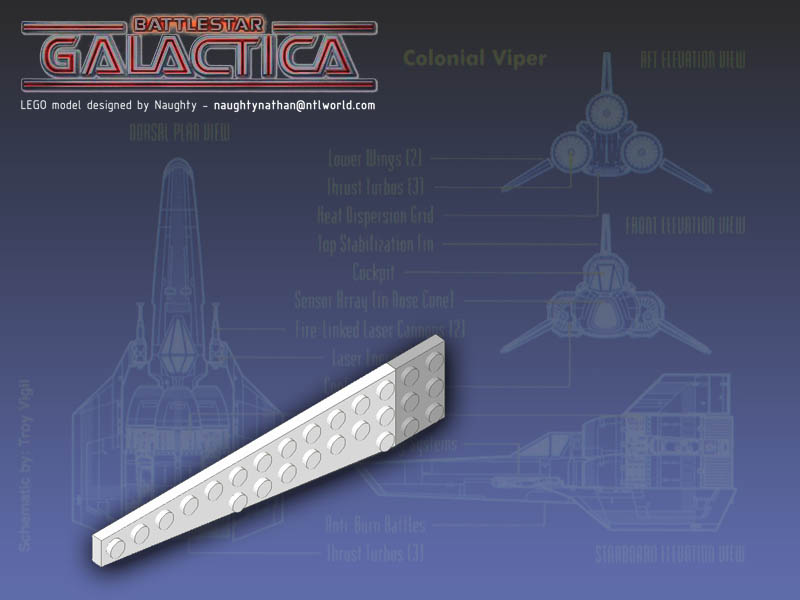

Viper - Step 37

LEGO Viper – Step 37

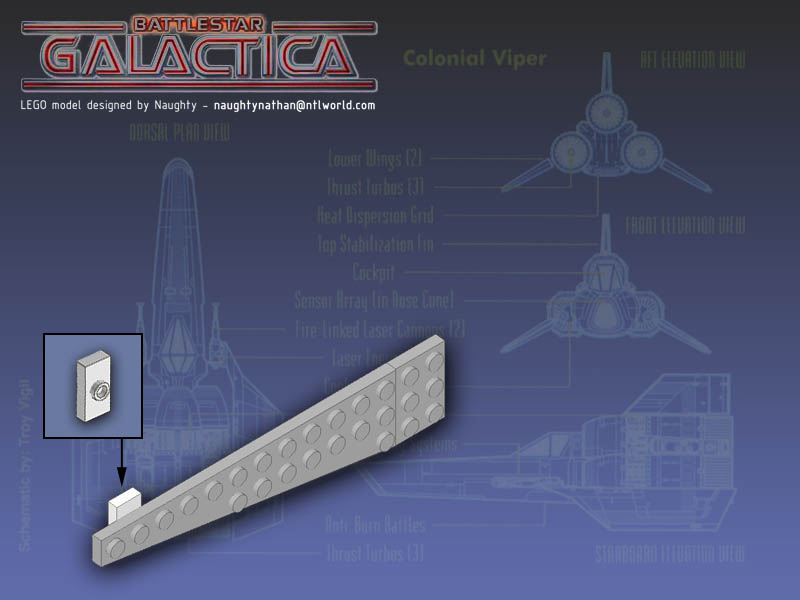

Viper - Step 38

LEGO Viper – Step 38

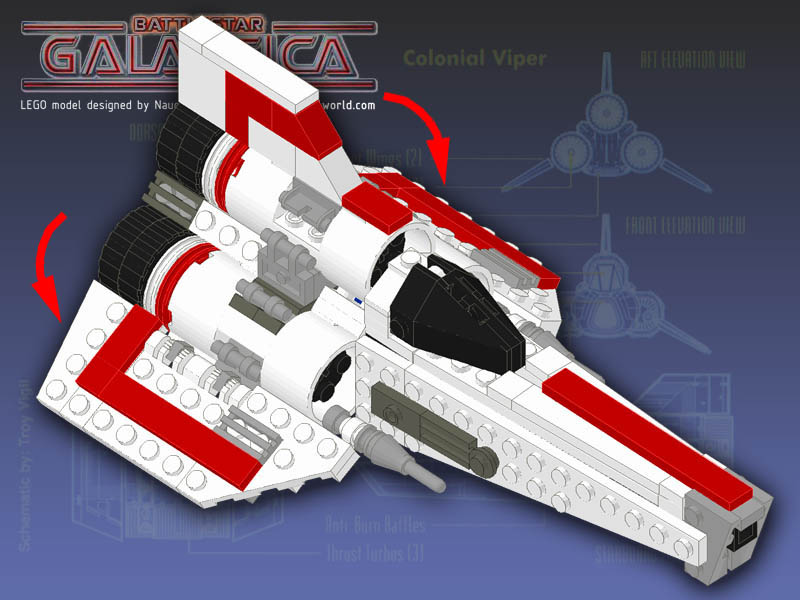

Viper - Step 29

LEGO Viper – Step 39


Viper - Step 40

LEGO Viper – Step 40

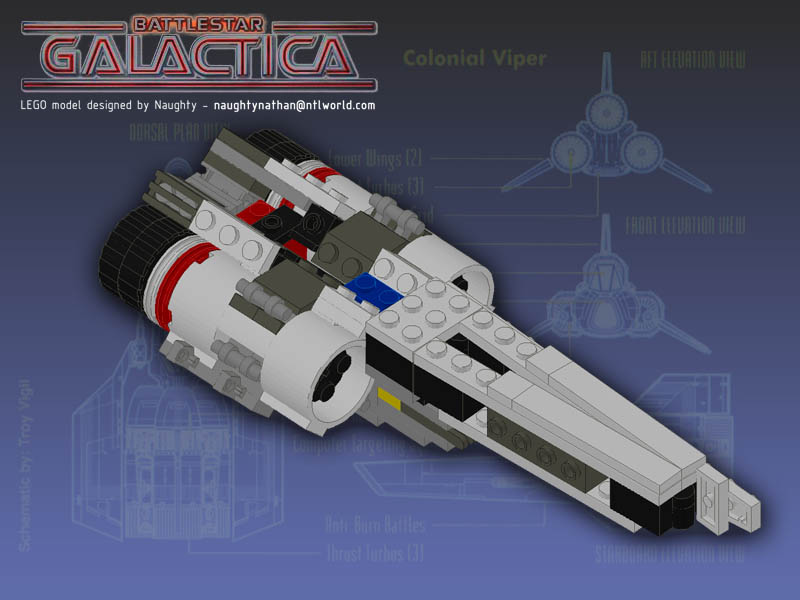

Viper - Step 41

LEGO Viper – Step 41


Viper - Step 42

LEGO Viper – Step 42

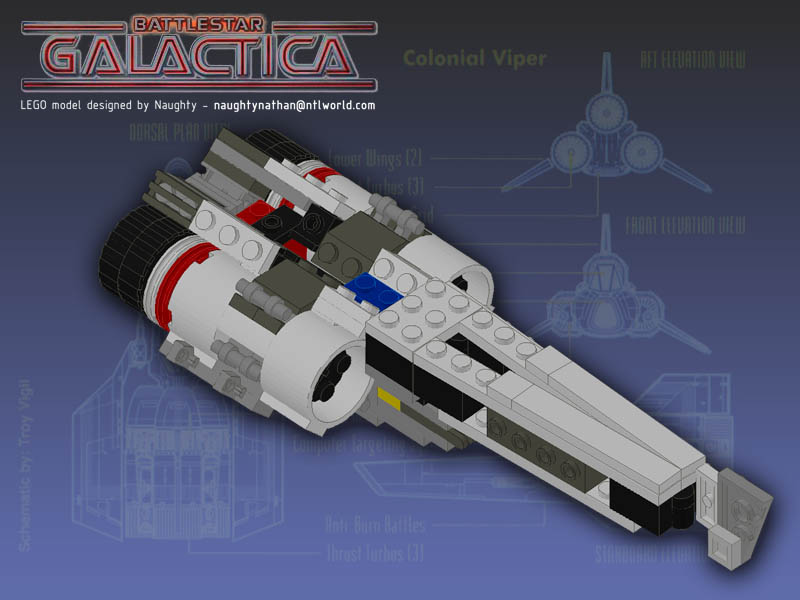

Viper - Step 43

LEGO Viper – Step 43


Viper - Step 44

LEGO Viper – Step 44


Viper - Step 45

LEGO Viper – Step 45

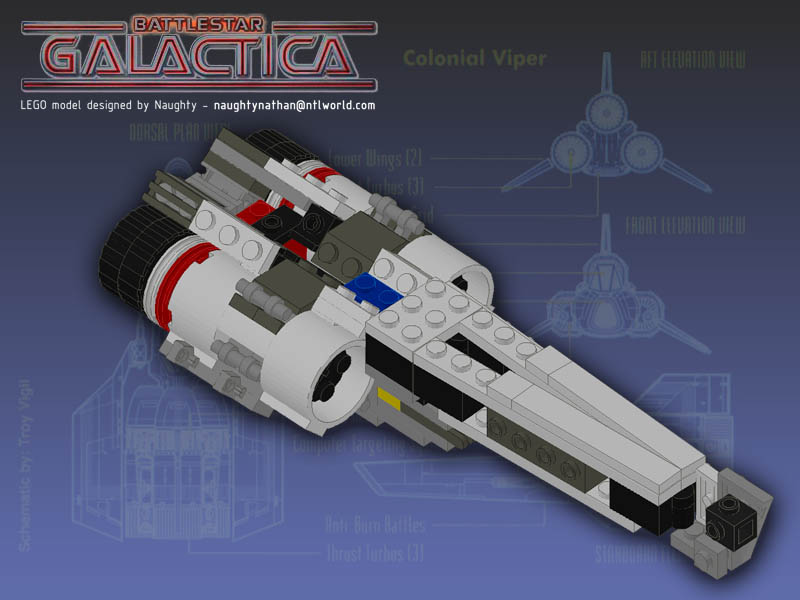

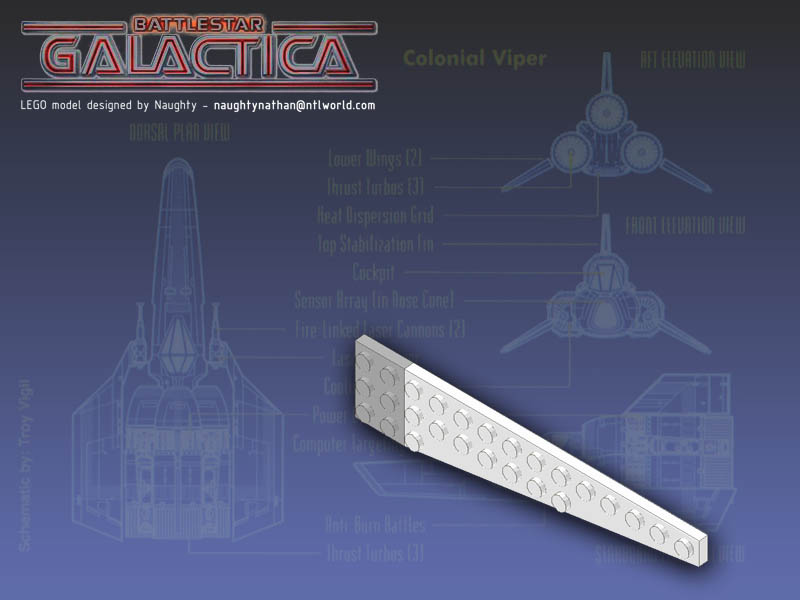

Viper - Step 46

LEGO Viper – Step 46


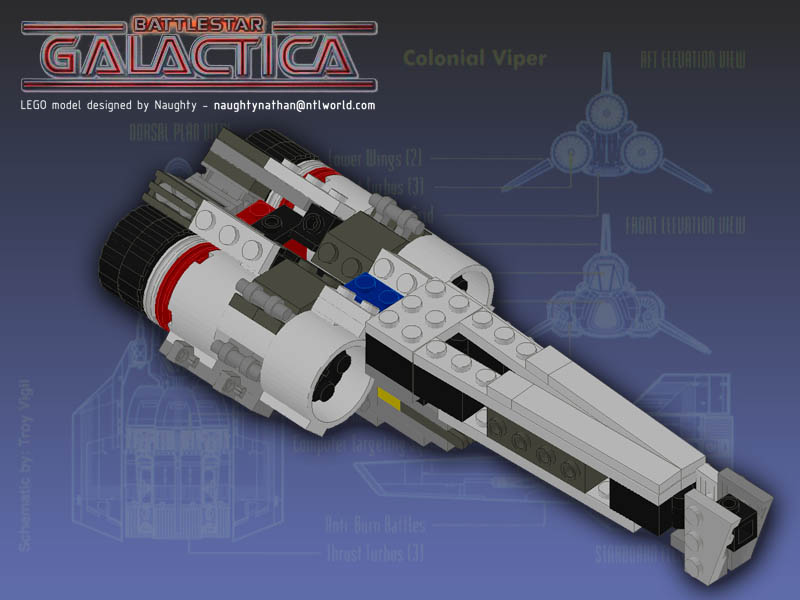

Viper - Step 47

LEGO Viper – Step 47


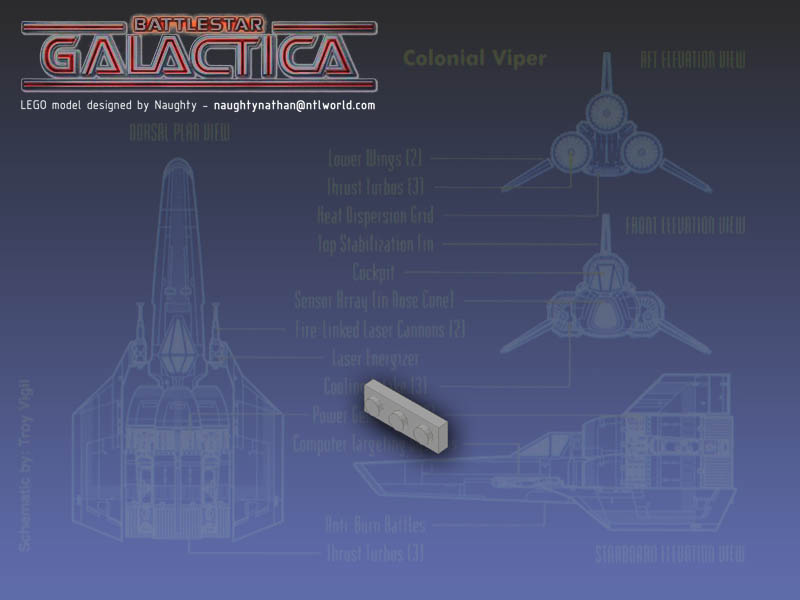

Viper - Step 48

LEGO Viper – Step 48

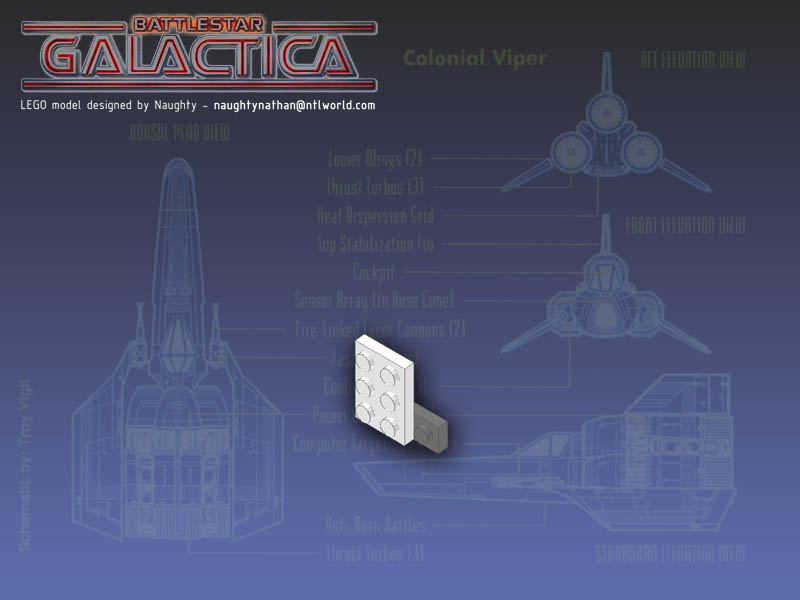

Viper - Step 49

LEGO Viper – Step 49

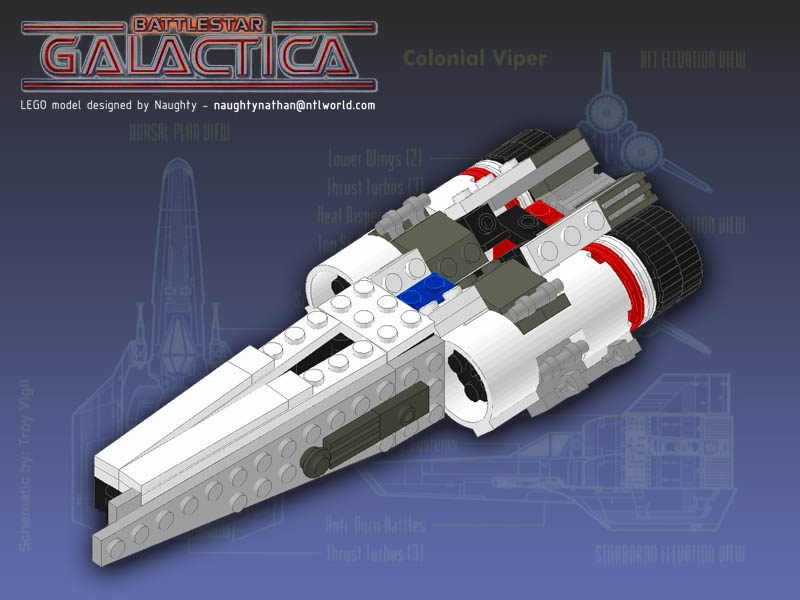

Viper - Step 50

LEGO Viper – Step 40

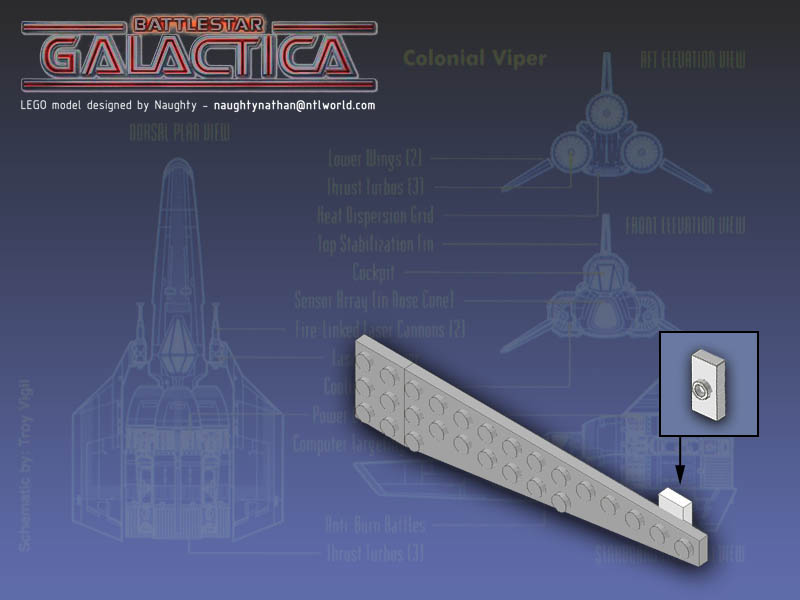

Viper - Step 51

LEGO Viper – Step 51

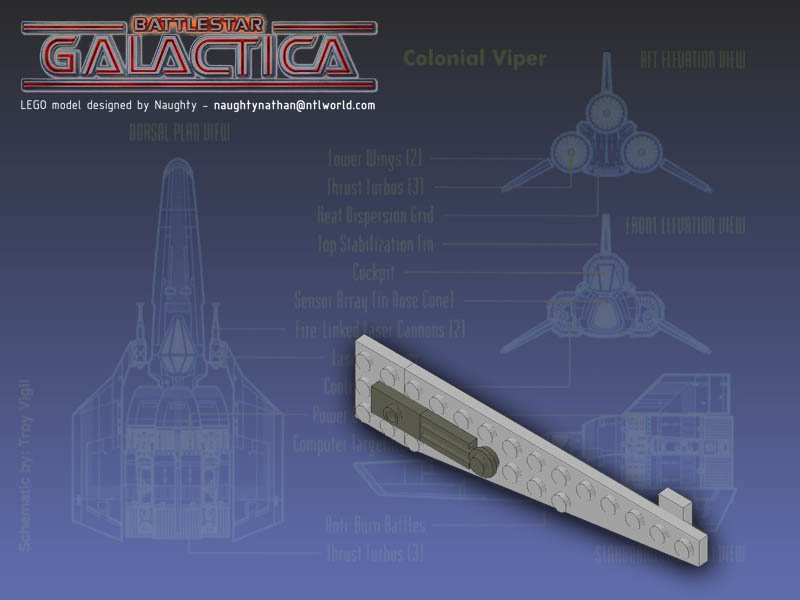

Viper - Step 52

LEGO Viper – Step 52


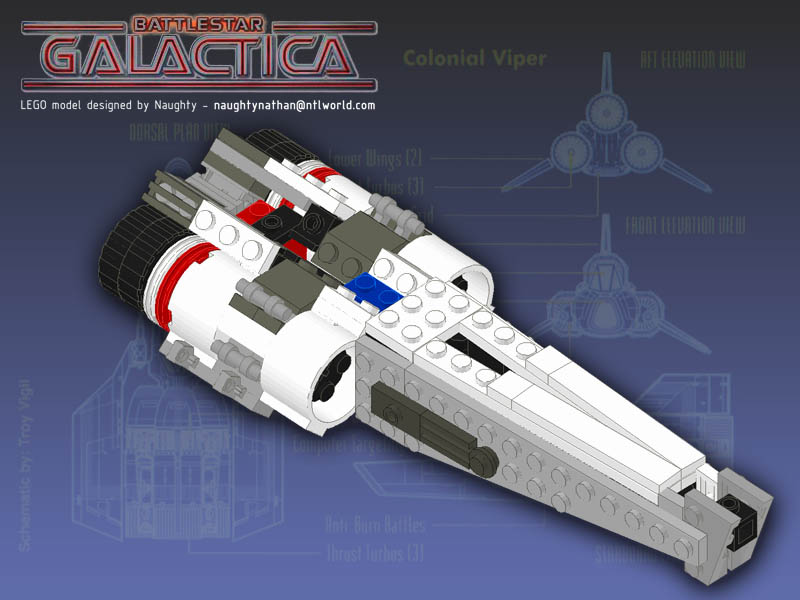

Viper - Step 53

LEGO Viper – Step 53


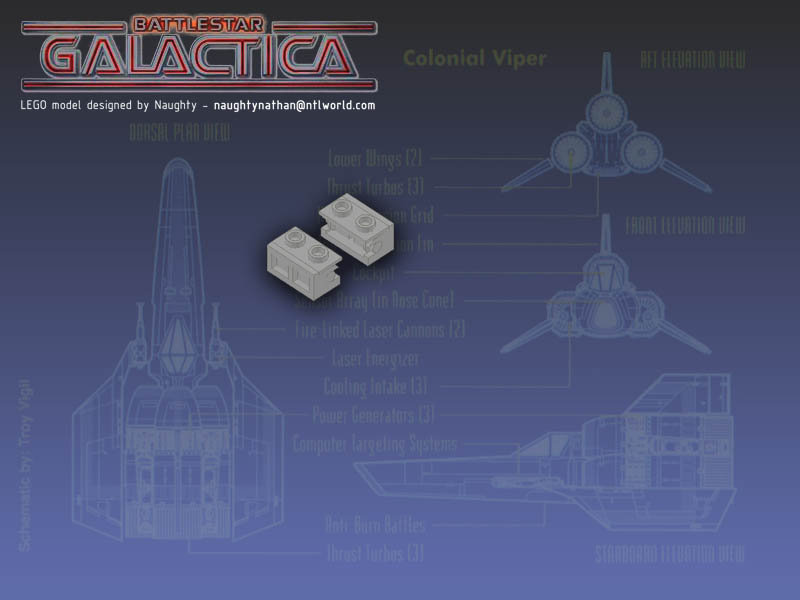

Viper - Step 54

LEGO Viper – Step 54

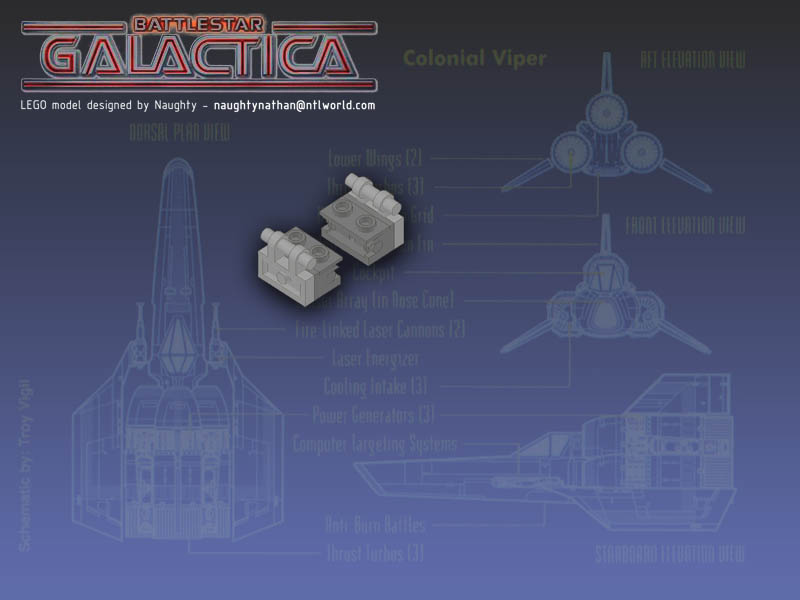

Viper - Step 55

LEGO Viper – Step 55

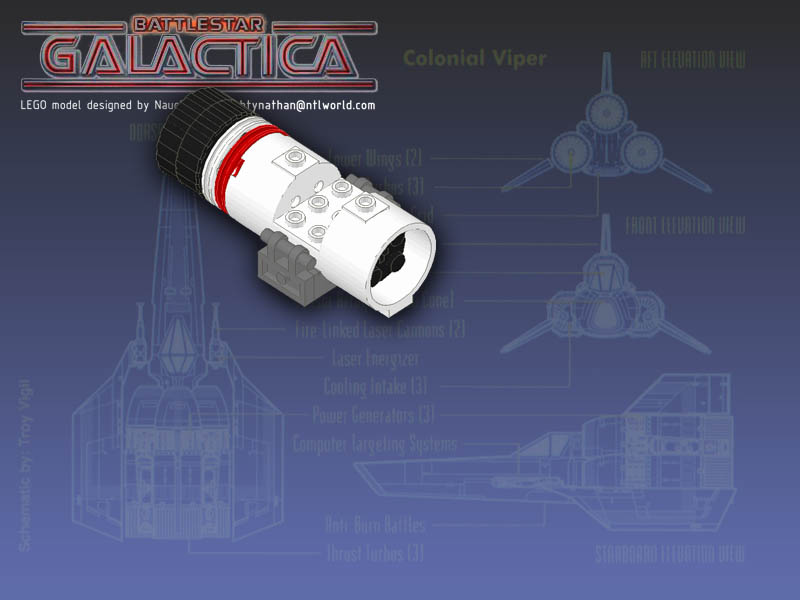

Viper - Step 56

LEGO Viper – Step 56


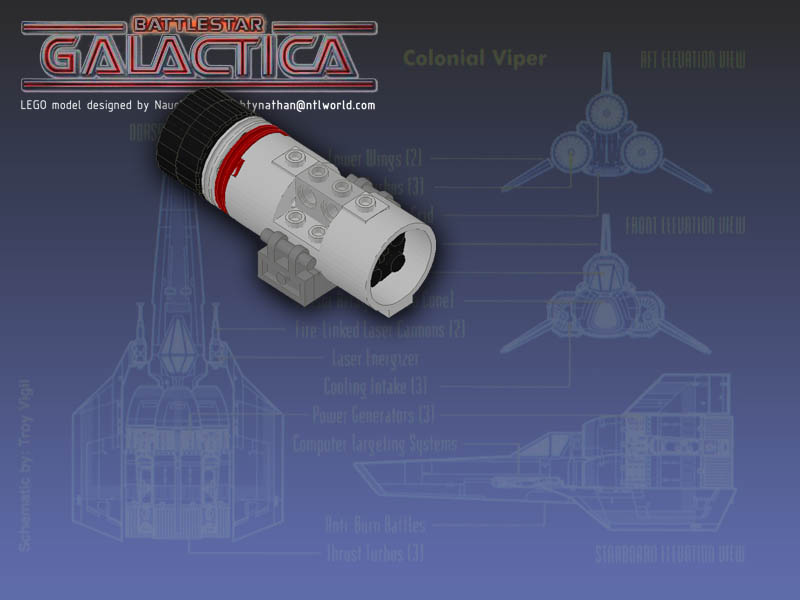

Viper - Step 57

LEGO Viper – Step 57


Viper - Step 58

LEGO Viper – Step 58


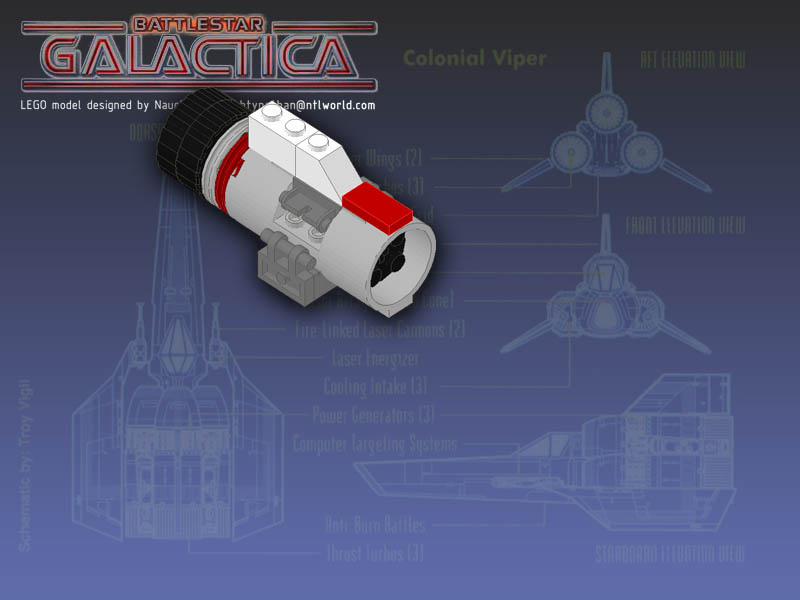

Viper - Step 59

LEGO Viper – Step 59

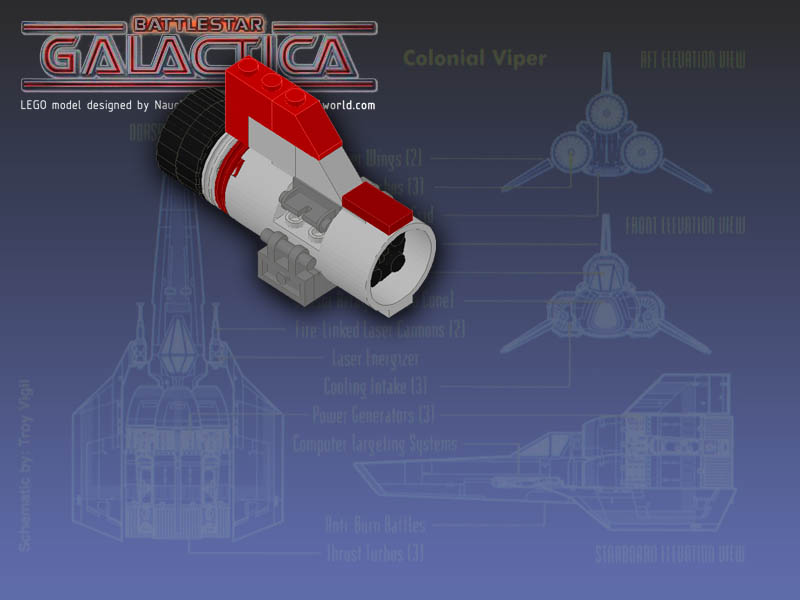

Viper - Step 60

LEGO Viper – Step 60

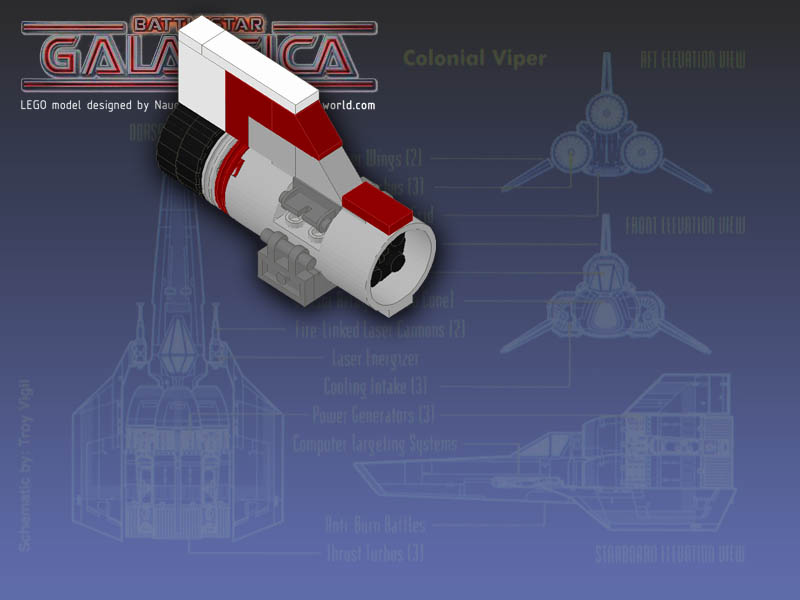

Viper - Step 61

LEGO Viper – Step 61

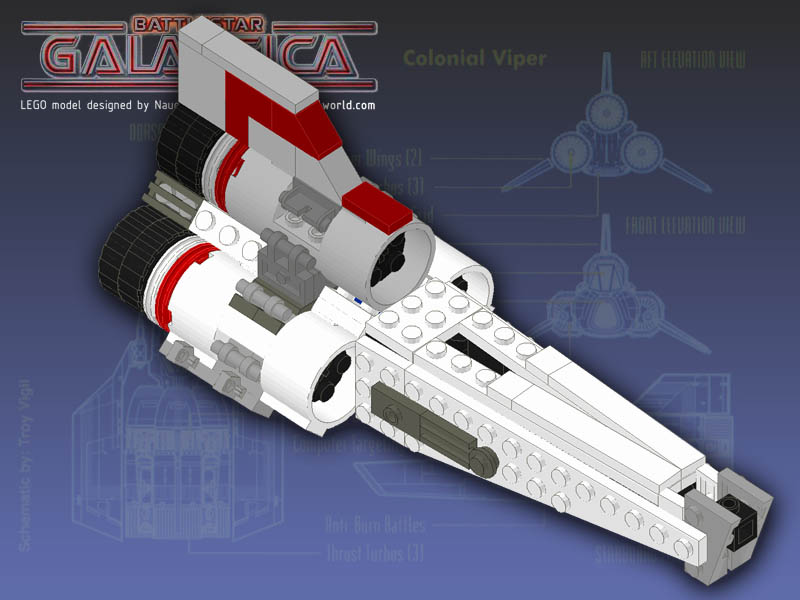

Viper - Step 62

LEGO Viper – Step 62


Viper - Step 63

LEGO Viper – Step 63

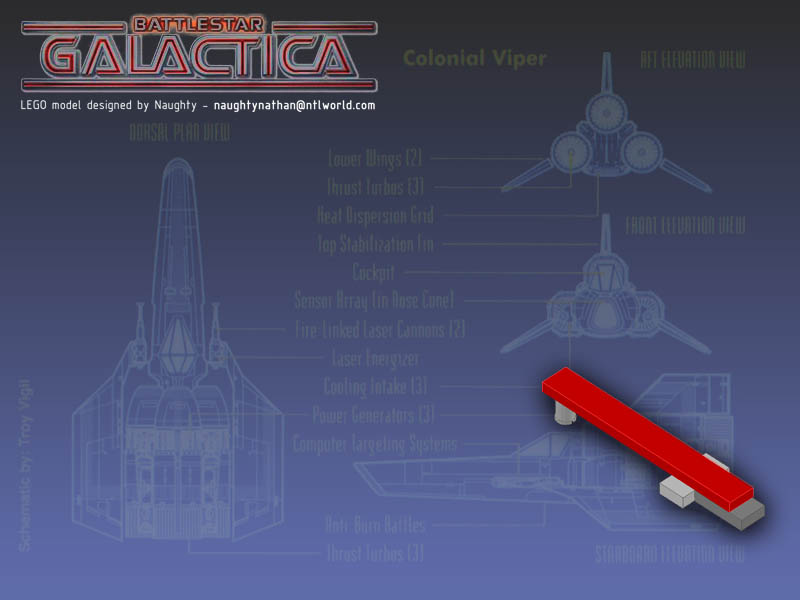

Viper - Step 64

LEGO Viper – Step 64

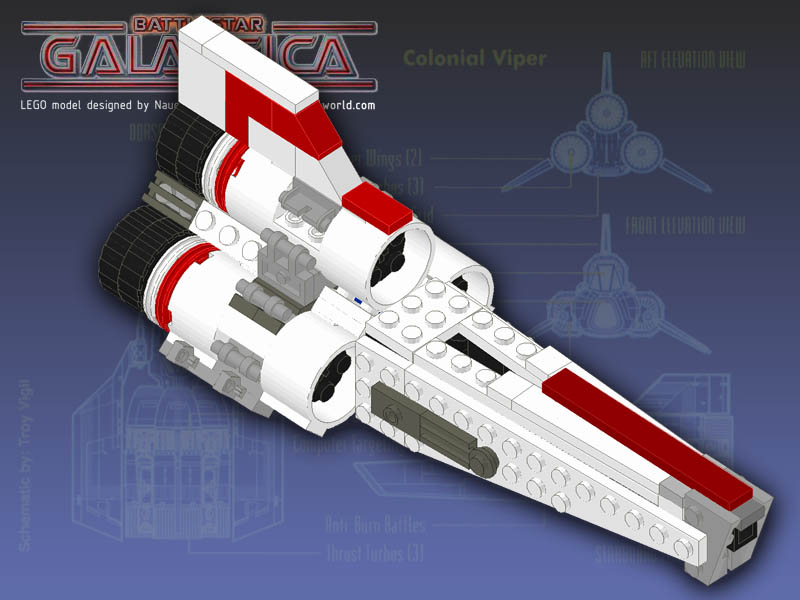

Viper - Step 65

LEGO Viper – Step 65

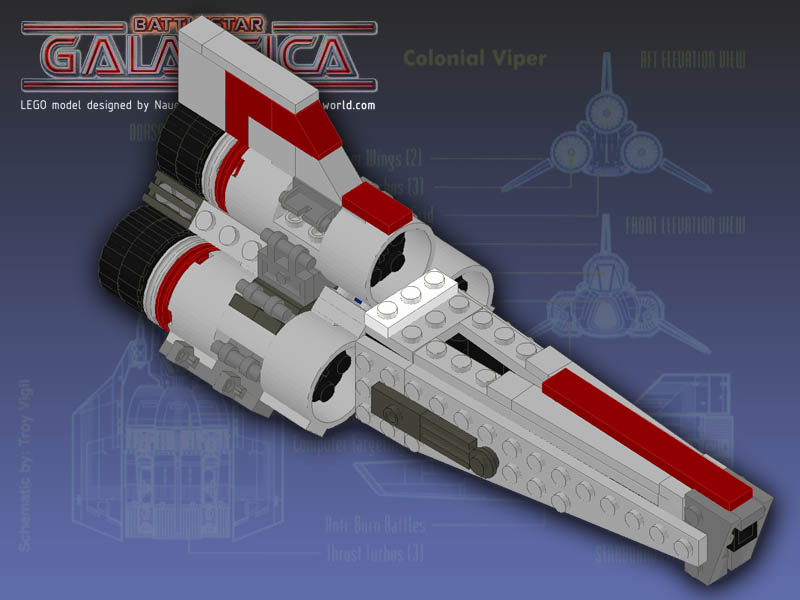

Viper - Step 66

LEGO Viper – Step 66

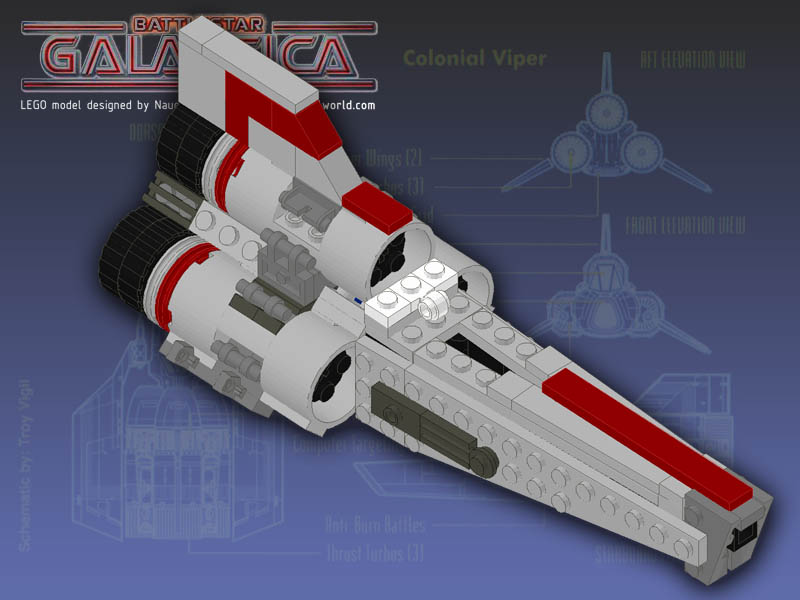

Viper - Step 67

LEGO Viper – Step 67


Viper - Step 68

LEGO Viper – Step 68


Viper - Step 69

LEGO Viper – Step 69


Viper - Step 70

LEGO Viper – Step 70

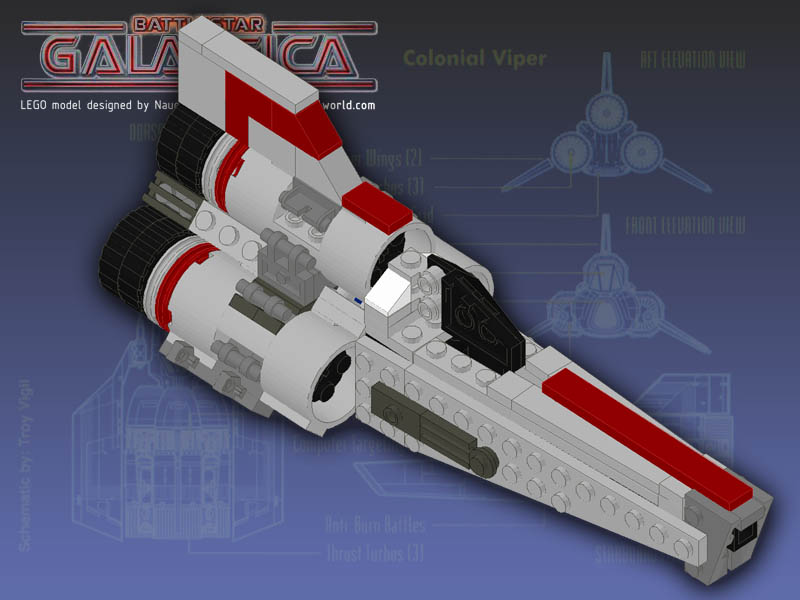

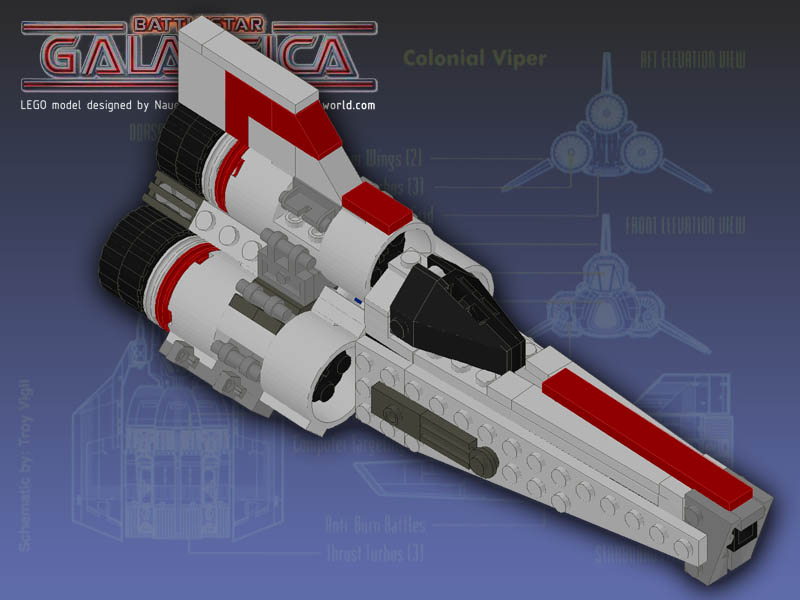

Viper - Step 71

LEGO Viper – Step 71

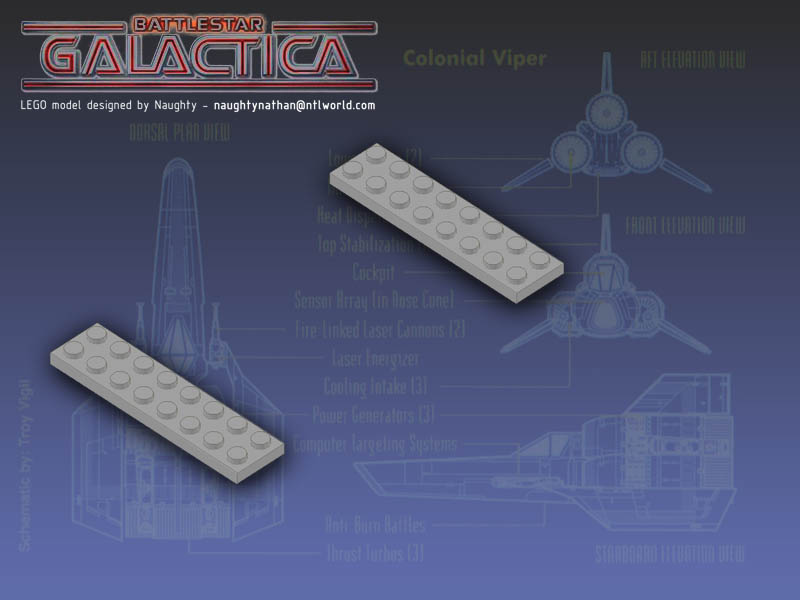

Viper - Step 72

LEGO Viper – Step 72


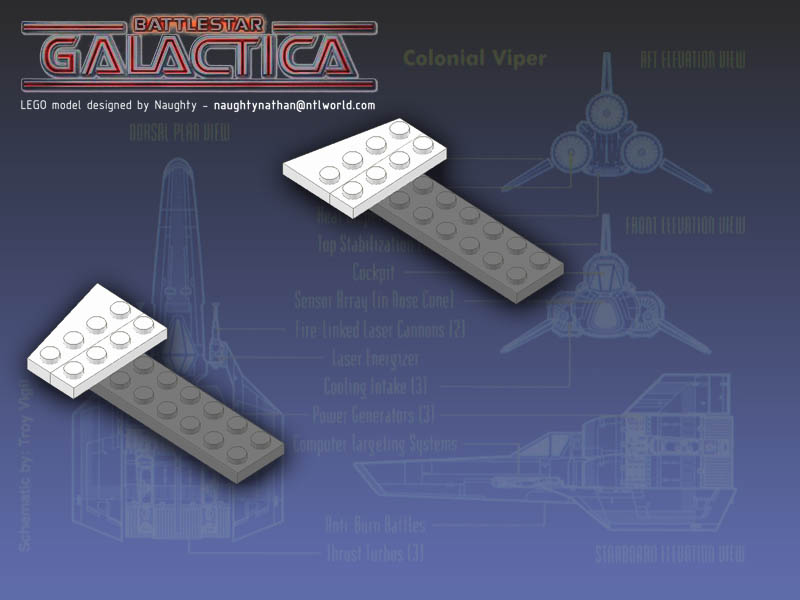

Viper - Step 73

LEGO Viper – Step 73


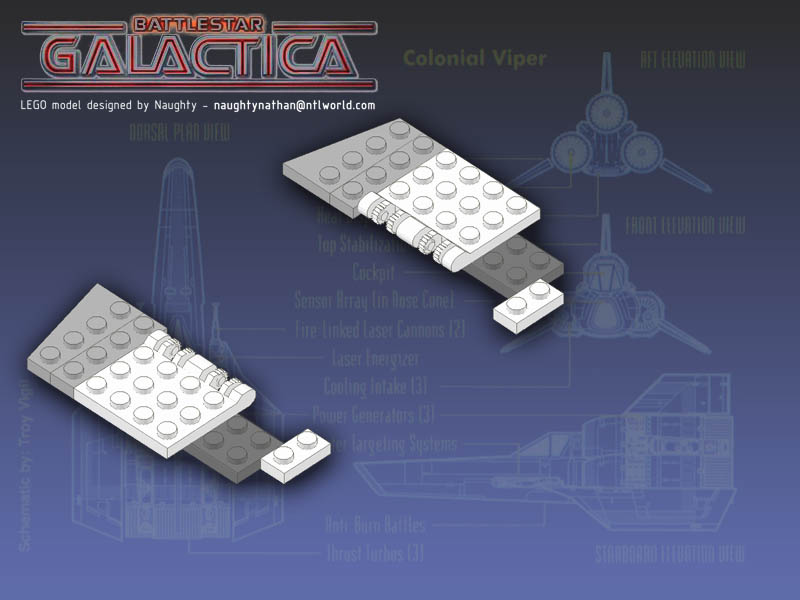

Viper - Step 74

LEGO Viper – Step 74


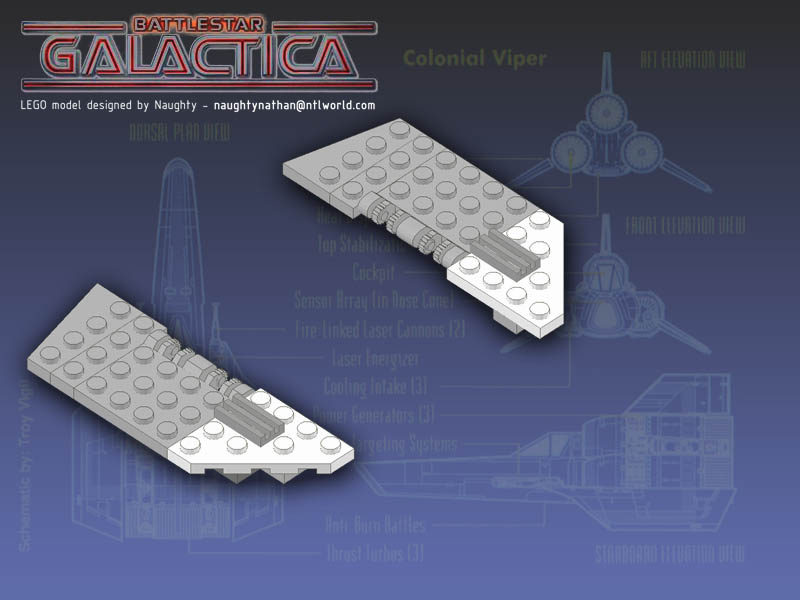

Viper - Step 75

LEGO Viper – Step 75

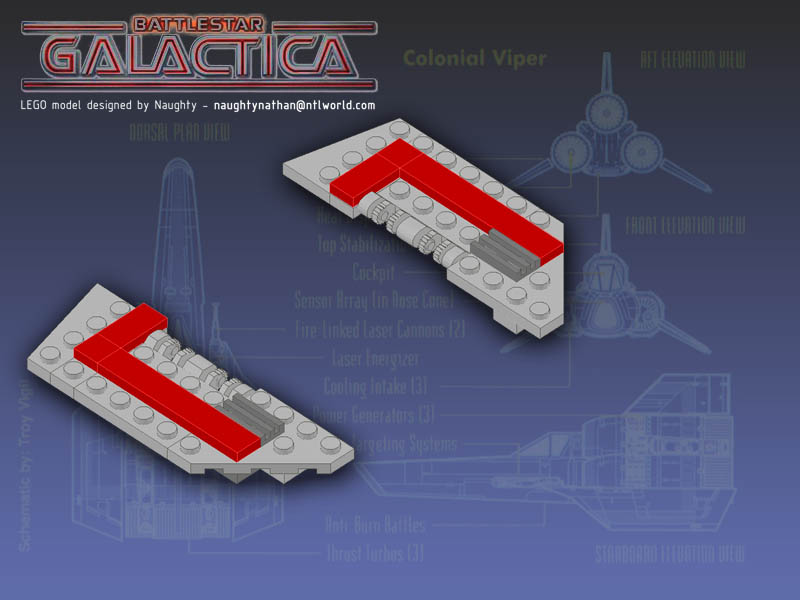

Viper - Step 76

LEGO Viper – Step 76


Viper - Step 77

LEGO Viper – Step 77


Viper - Step 78

LEGO Viper – Step 78

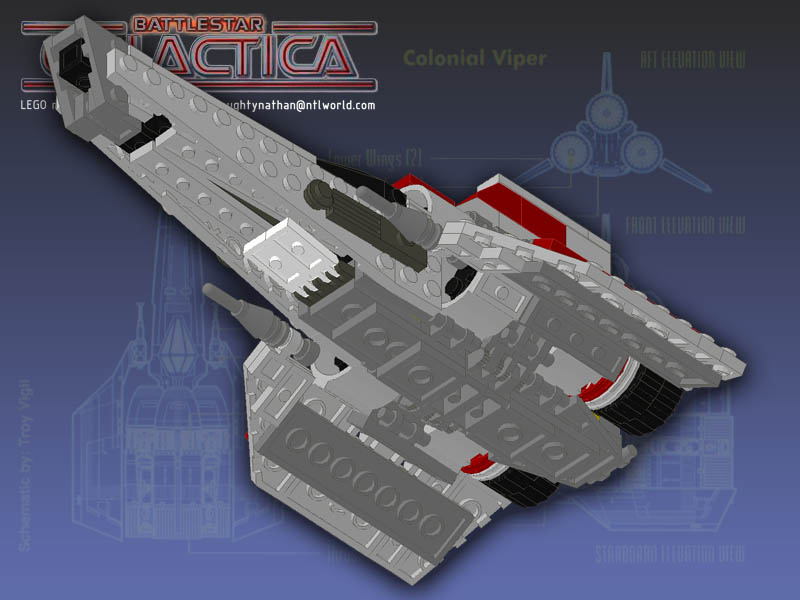

Viper - Step 79

LEGO Viper – Step 79

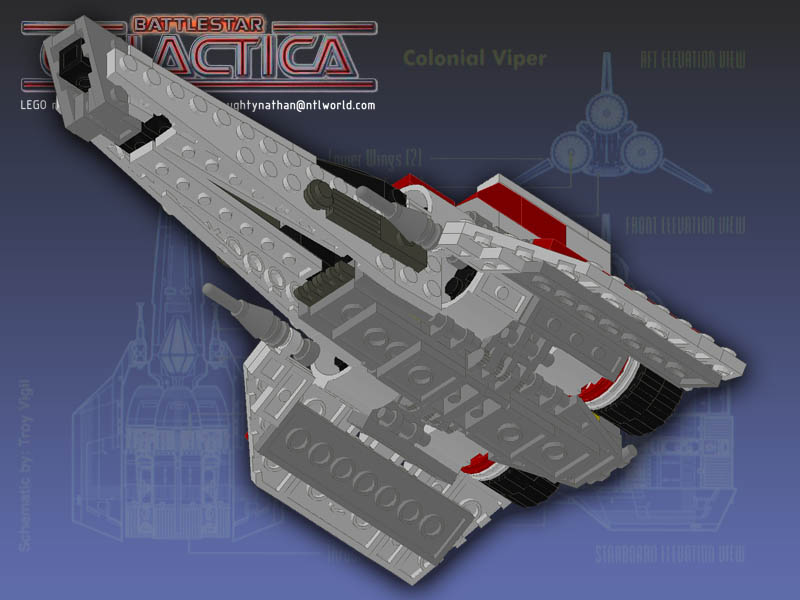

Viper - Step 80

LEGO Viper – Step 80


Viper - Step 81

LEGO Viper – Step 81


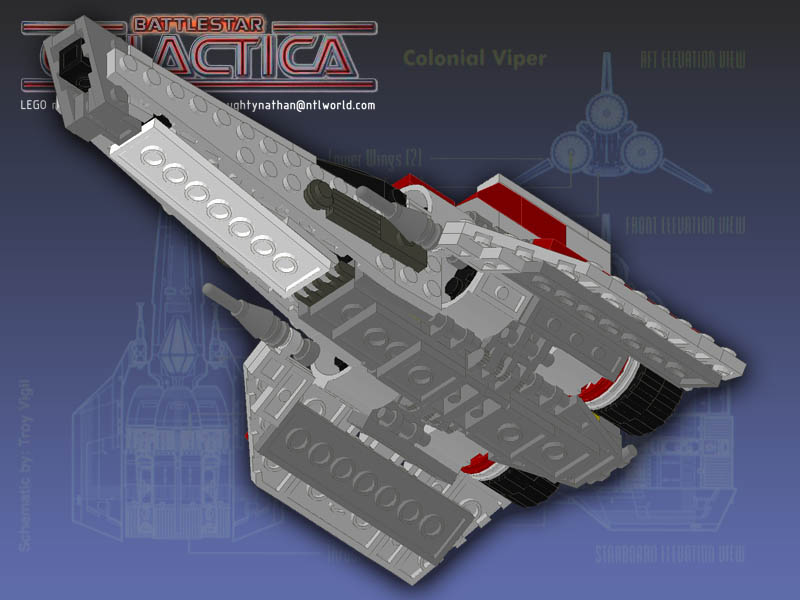

Viper - Step 82

LEGO Viper – Step 82

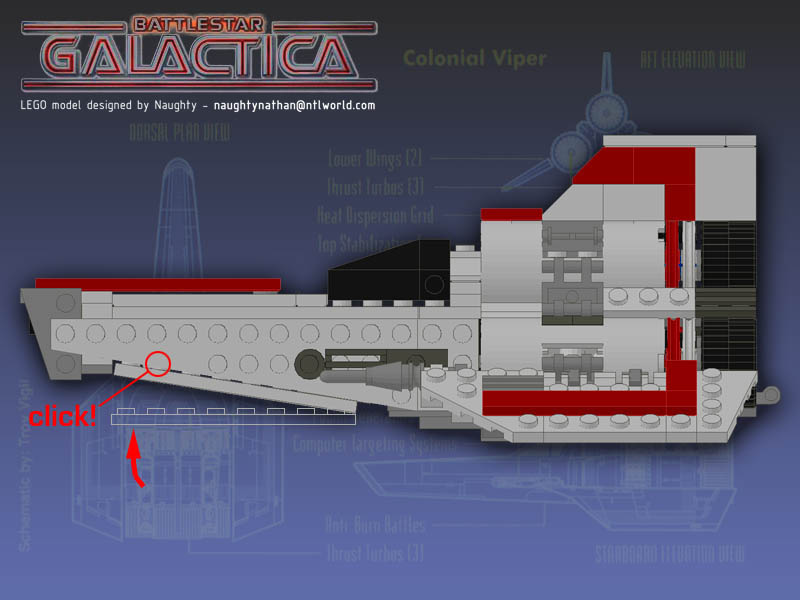

Viper - Step 83
